78 _Using standard workflow
• Type: Shows the workform is locked by the creator or not.
• Name: Shows the workform name.
• Input: Shows the workform’s input module name.
• Transmit: Shows the workform’s transmit module name. If two or
more modules are added in transmit workform, this column displays
Multi without any icon.
• Properties: Shows the workform’s perperties.
• Create: Creates a new private workform.
•
Delete
: Deletes the selected workform.
• Edit: Lets you to modify a workform.
•
Detail
: Shows detailed workform information.
• Search: Searches a workform with a workform name.
• Task: Imports a workform from USB, export a workform to USB,
copy or move a workform to public workform. It also makes a
shortcut in favorite workform tab by clicking Set to Favorite WF or
removes the shortcut by clicking Set to Normal WF.
• Execute: Start the job defined in the workform.

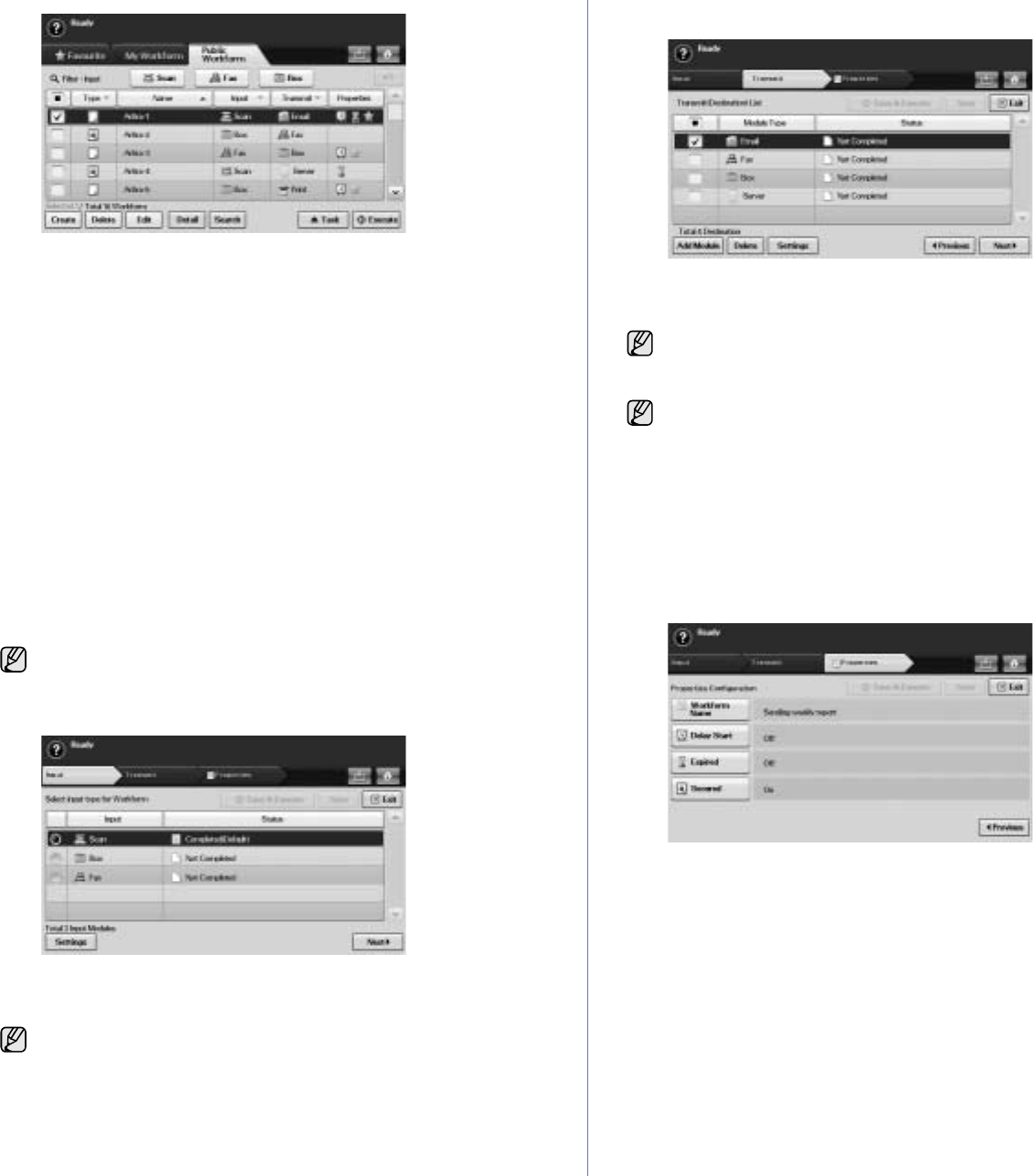

Workform Creating Screen
You can create a new workform. To add a new workform, press Create on
the My Workform or Public Workform tab.
Input Tab
• Input: Shows the workform’s input module name.
• Status: shows the setting status. To create a workform, you have to
set every mandatory items of the assigned input module.
•
Settings
: Configures the setting values for the module.
• Next: Goes to the next tab.
Transmit Tab
• Transmit: Shows the workform’s transmit module name.
• Status: shows the setting status. To create a workform, you have to
set every mandatory items of every assigned transmit modules.
•
Add Module
: Add transmit module(s).
•
Delete
: Deletes the selected module.
•
Settings
: Configures the setting values for the module.
• Previous: Goes to the next tab.
• Next: Goes to the next tab.
Properties Tab
• Workform Name: Sets the workform name.
• Delay Start: Schedule the start date and time to start.
• Expired: Sets the expire date.
• Secured: Locks the workform with password protection.
• Previous: Goes to the next tab.
You can create maximum 100 workforms.
After you do fill out all mandatory items, the Save & Execute and
Save button are enabled.
After you do fill out all mandatory items, the Save & Execute and
Save button are enabled.
Before you add module, make sure that the parameters are correctly
configured for each module.
• Fax: See "Preparing to fax" on page 58.
• Email, Server: See "Scanning originals and sending via SMB/FTP
(Scan to Server)" on page 53.
