Terminal Emulation Communication Set-up

Items Contents

Baud Rate 38400 bps

Data Bit 8 Bit

Parity None

Stop Bit 1 Bit

Flow Control None

Data Code ASCII

1

2

3

5

9

6

1

2

3

5

9

6

Creating RS-232C Cable

The RS-232C Cable is packed with SNS-110, and so you don’t need to make it .

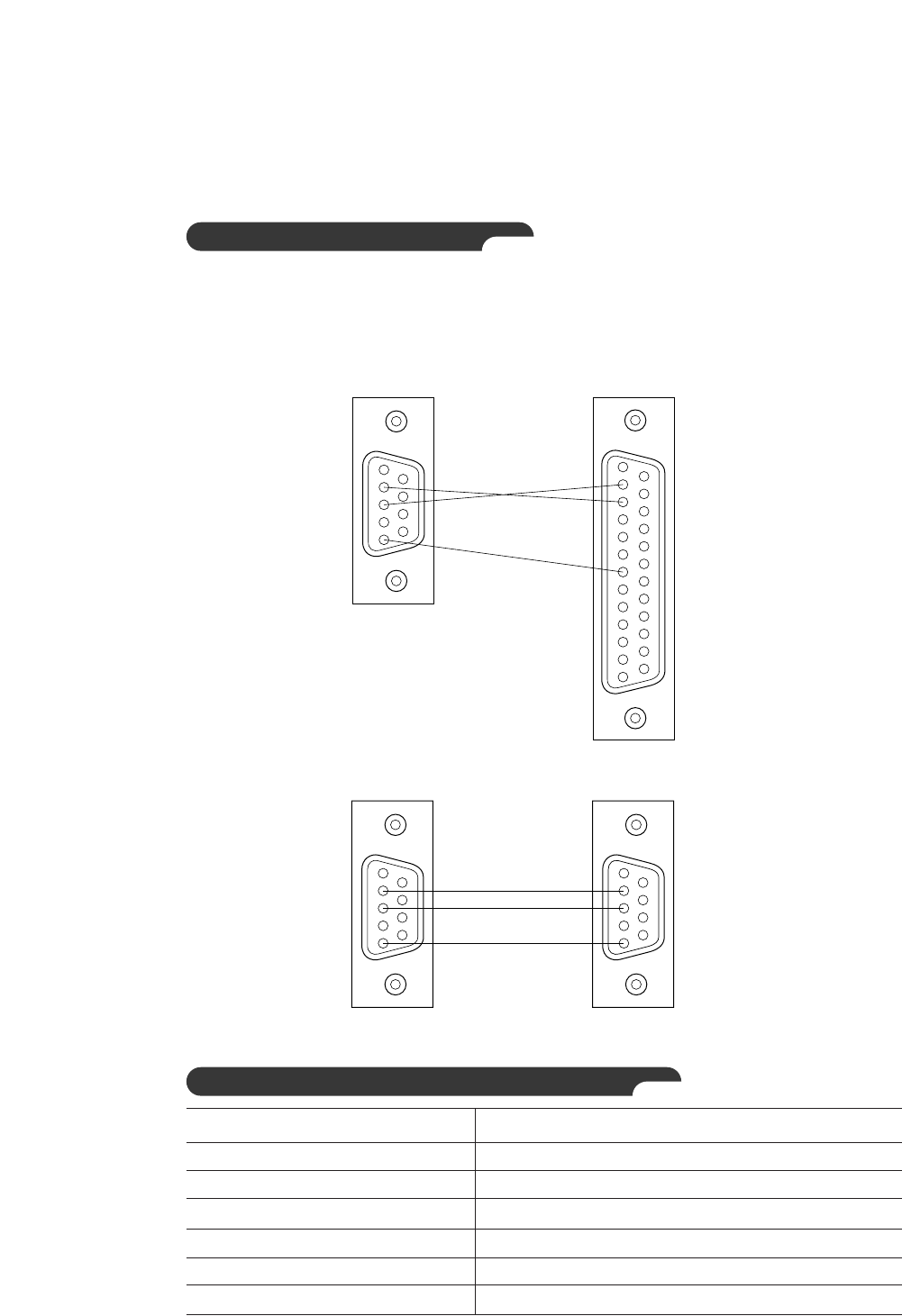

The wiring diagram shown below is for your information.

9Pin Female to 25Pin Female
