Appendix B Wiring Diagram
This section provides an example illustration of an input and output wiring scheme. Before making any connections,
please turn off ALL audio and video devices. Unplug those that do not have a main power switch. It is recommended
that all cables, including speaker cables be kept as short as possible for best sound quality.

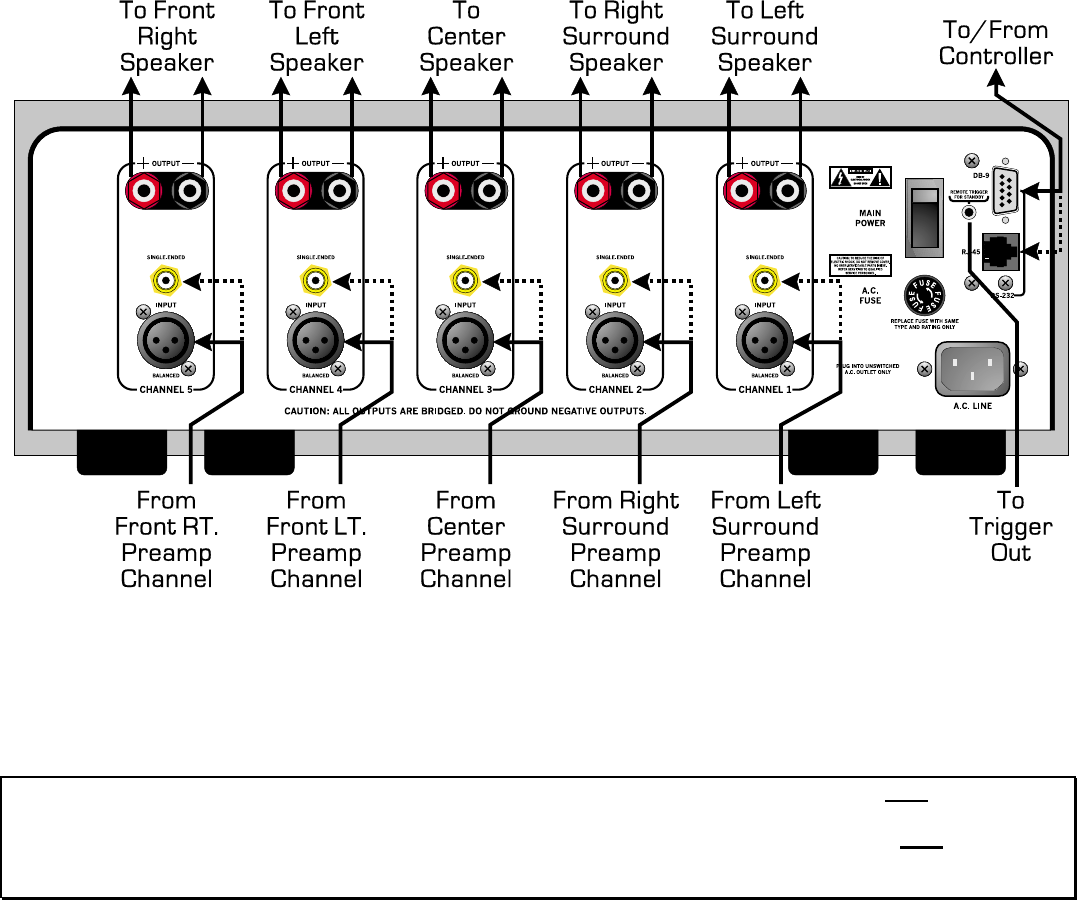

Figure 4 - Examples of Typical Input and Output Connections
------------ = optional connection.
WARNING
: Each channel is a balanced bridge amplifier, thus the negative speaker terminal is
NOT
a ground, and
cannot be connected to a ground or a loudspeaker system with a common ground. Consult your speaker
manufacturer to ensure that any speaker in your system that will be connected to the Intrepid does
NOT
have internal
circuitry with a common ground. Damage will occur if the negative terminal is connected to ground, or to a terminal of
another channel or module.
