11 – Communications (continued)

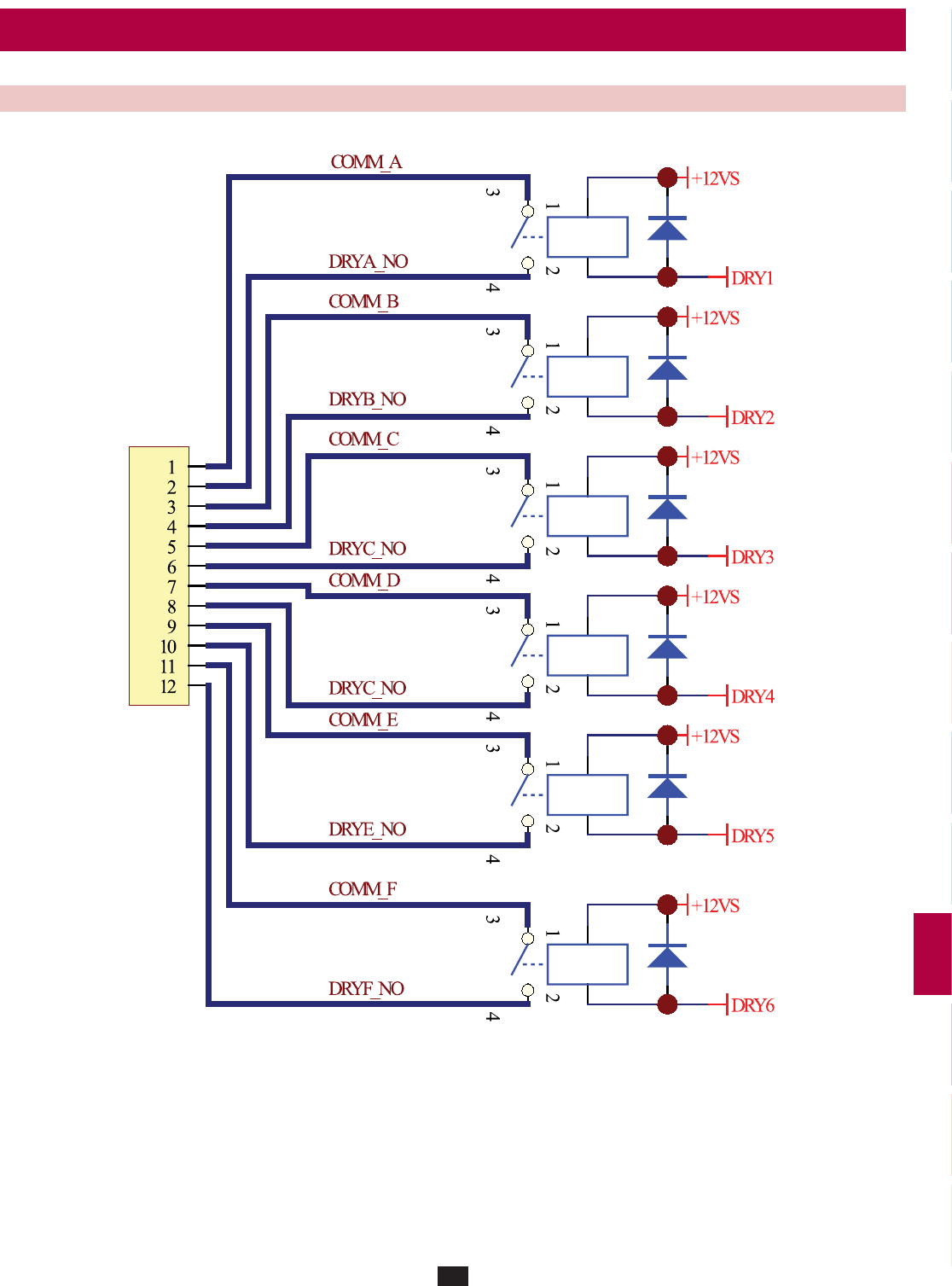

11-9 Output Dry Contact Circuit Diagram
The UPS system has six dry contact output connections. These contacts can be normally open or normally closed.
OUTPUT
DRY
CONTACT
