Device Information
34 6211-I3 ADSL2+ Router User’s Guide
ADSL Statistics
Display ADSL statistics by clicking on ADSL under Statistics (Figure 19).

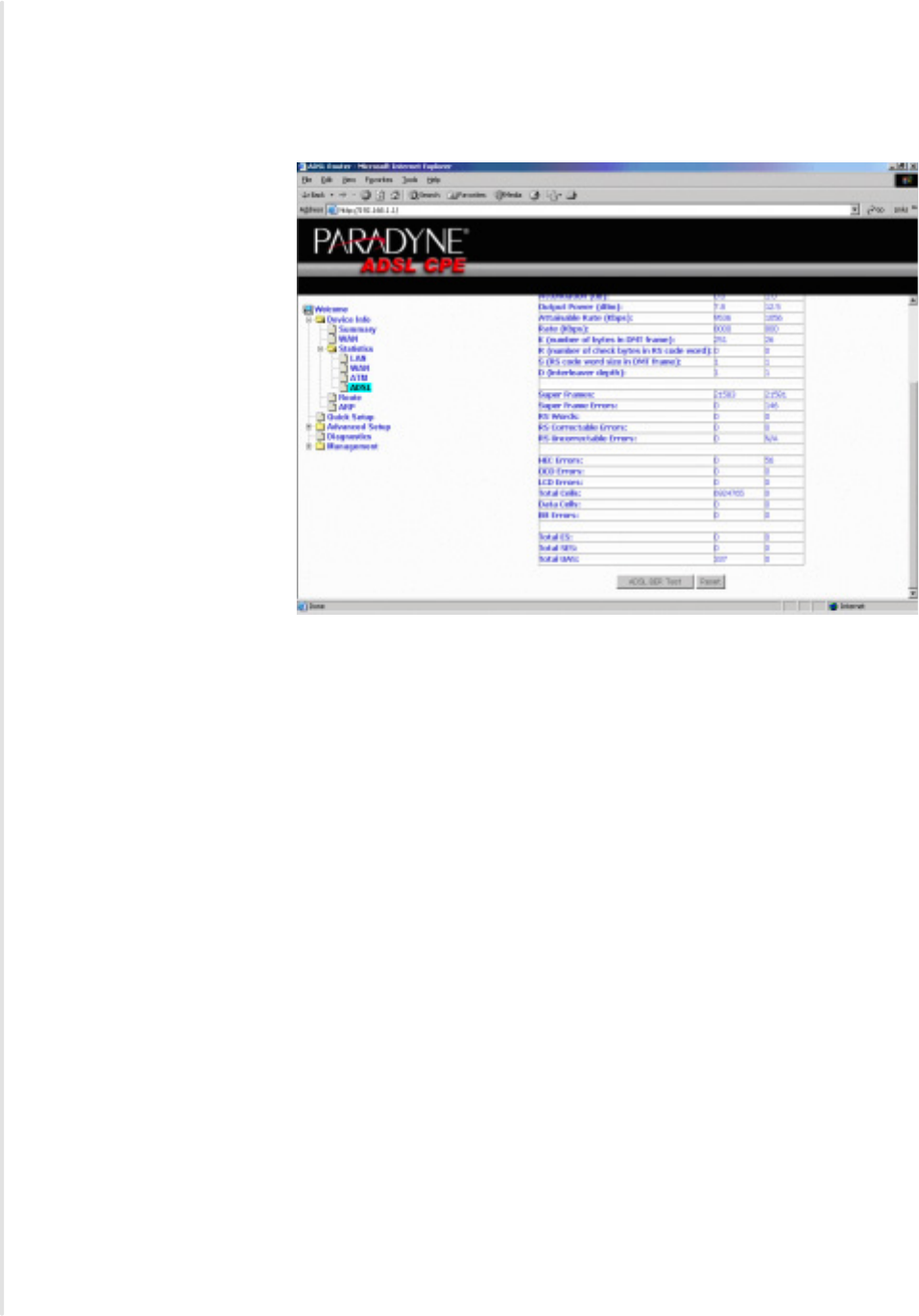

Figure 19: ADSL Status
ADSL BER Test
The ADSL Bit Error Rate (BER) test determines the quality of the ADSL
connection. The test is performed by transferring idle cells containing a
known pattern and comparing the received data with this known pattern to
check for any errors (Figure 20 and Figure 21).
To run a BER test:
1 Click on the ADSL BER Test button.
2 Select the test duration and click on Start
3 Check the result.
