Acer 7530 Laptop User Manual



Chapter 1 9

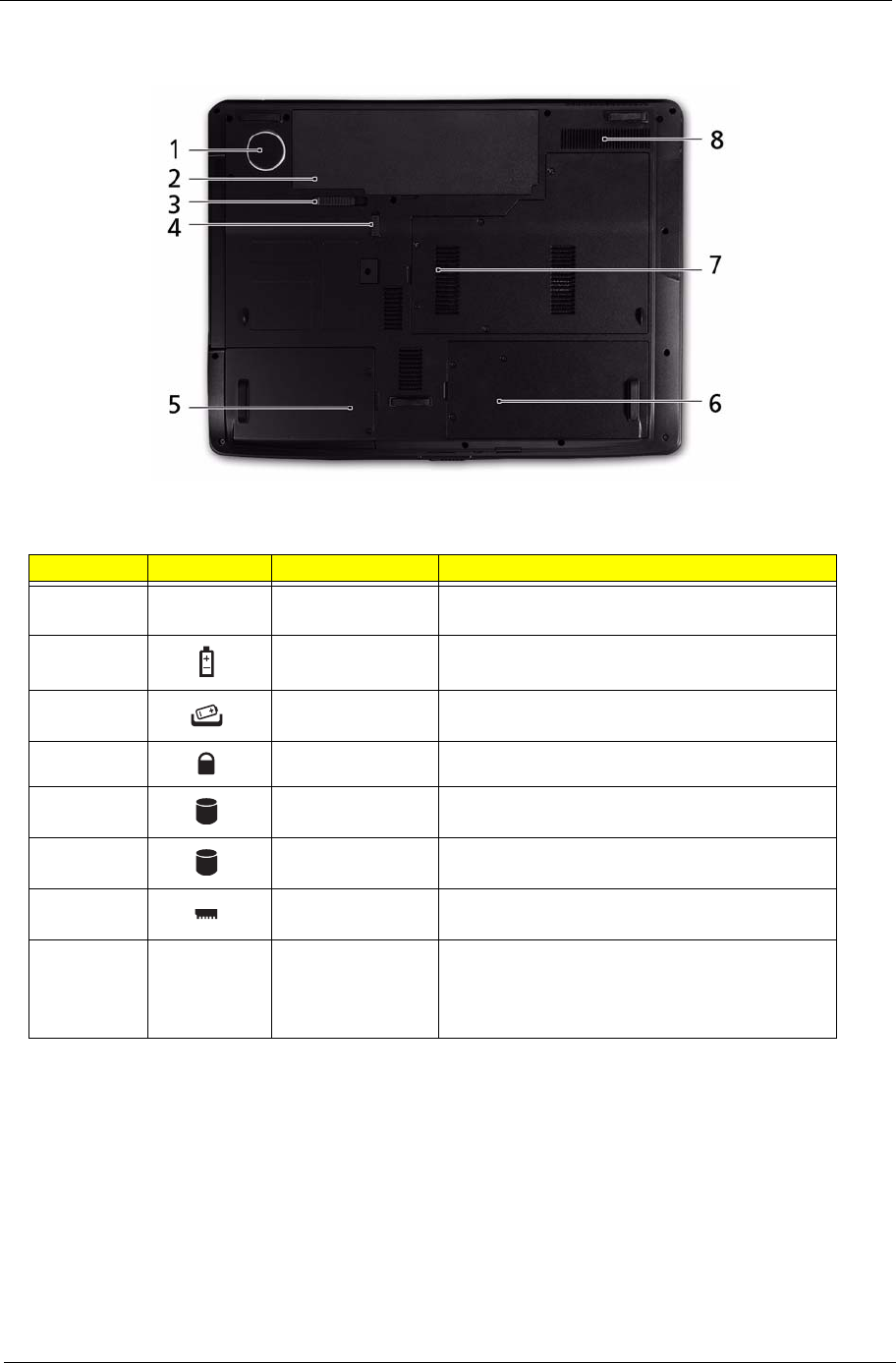

Bottom View
No. Icon Item Description
1 Subwoofer Emits low frequency sound output (only for
certain models).
2 Battery bay Houses the computer's battery pack.
3 Battery release
latch
Releases the battery for removal.
4 Battery lock Locks the battery in position.
5 Hard disk bay-Main Houses the computer's hard disk (secured with
screws).
6 Hard disk bay-
Secondary
Houses the computer's hard disk (secured with
screws). Only for certain models.
7 Memory
compartment
Houses the computer's main memory.
8 Ventilation slots
and cooling fan
Enable the computer to stay cool, even after
prolonged use.
Note: Do not cover or obstruct the opening of the
fan.
