Making Measurements
Using Ripple Limits to Test a Device
Figure 1-70 shows the ripple test with margin ripple value displayed for Frequency
Band 2. Notice that Frequency Band 2 passes the ripple test with a margin of 0.097 dB.
The plus sign (+) indicates this band passes the ripple test by the amount displayed. A
minus sign (−) would indicate that the band failed by the displayed amount.

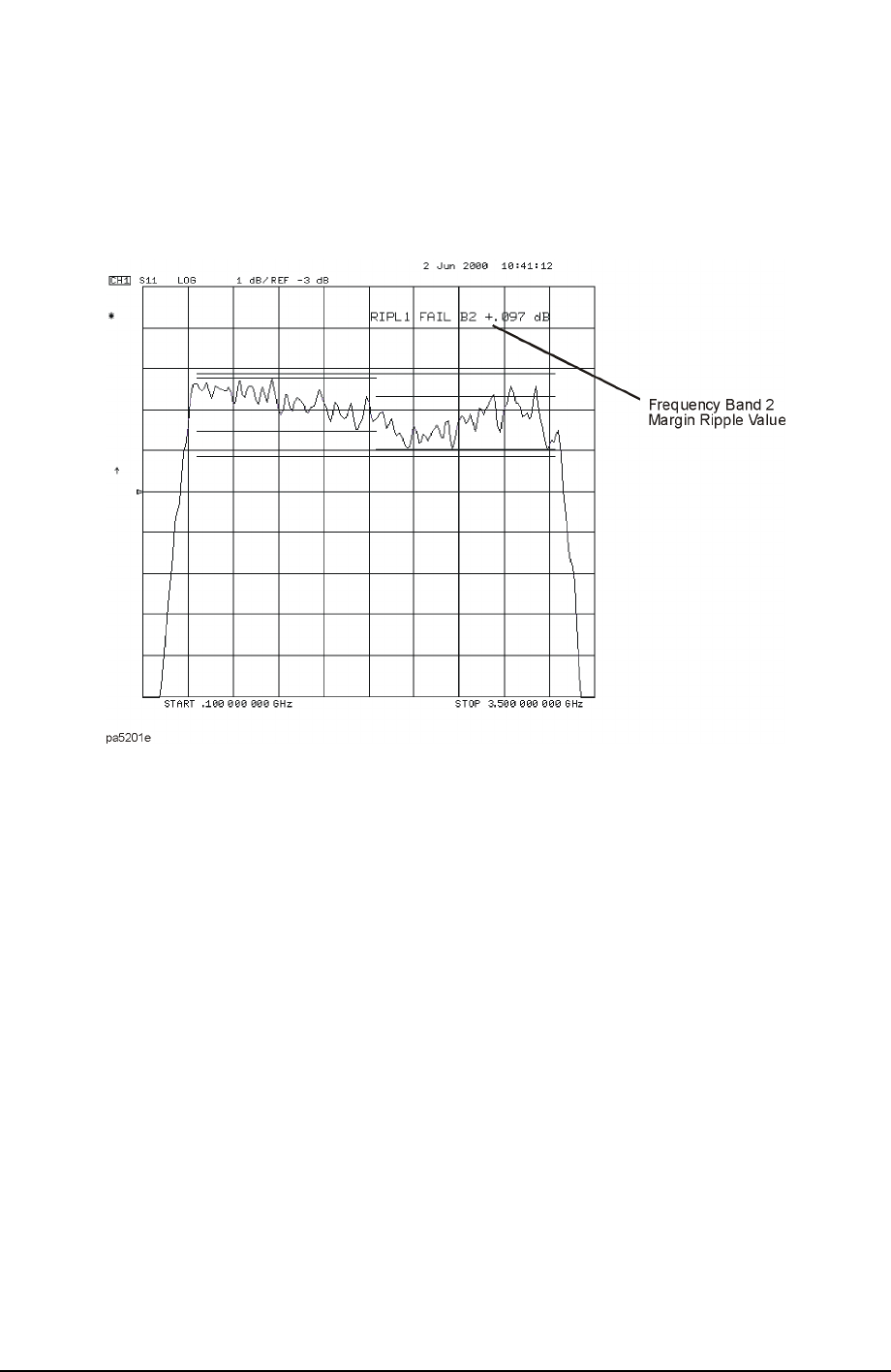

Figure 1-70 Filter Pass Band with Margin Ripple Value for Band 2 Activated
