OSPF Overview Configuring OSPF
page 1-14 OmniSwitch 6600 Family Advanced Routing Configuration Guide March 2005
When a takeover occurs, which can be planned (e.g., the users performs the takeover) or unplanned (e.g.,
the primary switch unexpectedly fails), an OSPF router must reestablish full adjacencies with all its previ-
ously fully adjacent neighbors. This time period between the restart and the reestablishment of adjacen-
cies is termed graceful restart.
In the network illustration below, a helper router, Router Y, monitors the network for topology changes.
As long as there are none, it continues to advertise its LSAs as if the restarting router, Router X, had
remained in continuous OSPF operation (i.e., Router Y’s LSAs continue to list an adjacency to Router X
over network segment S, regardless of the adjacency’s current synchronization state.)

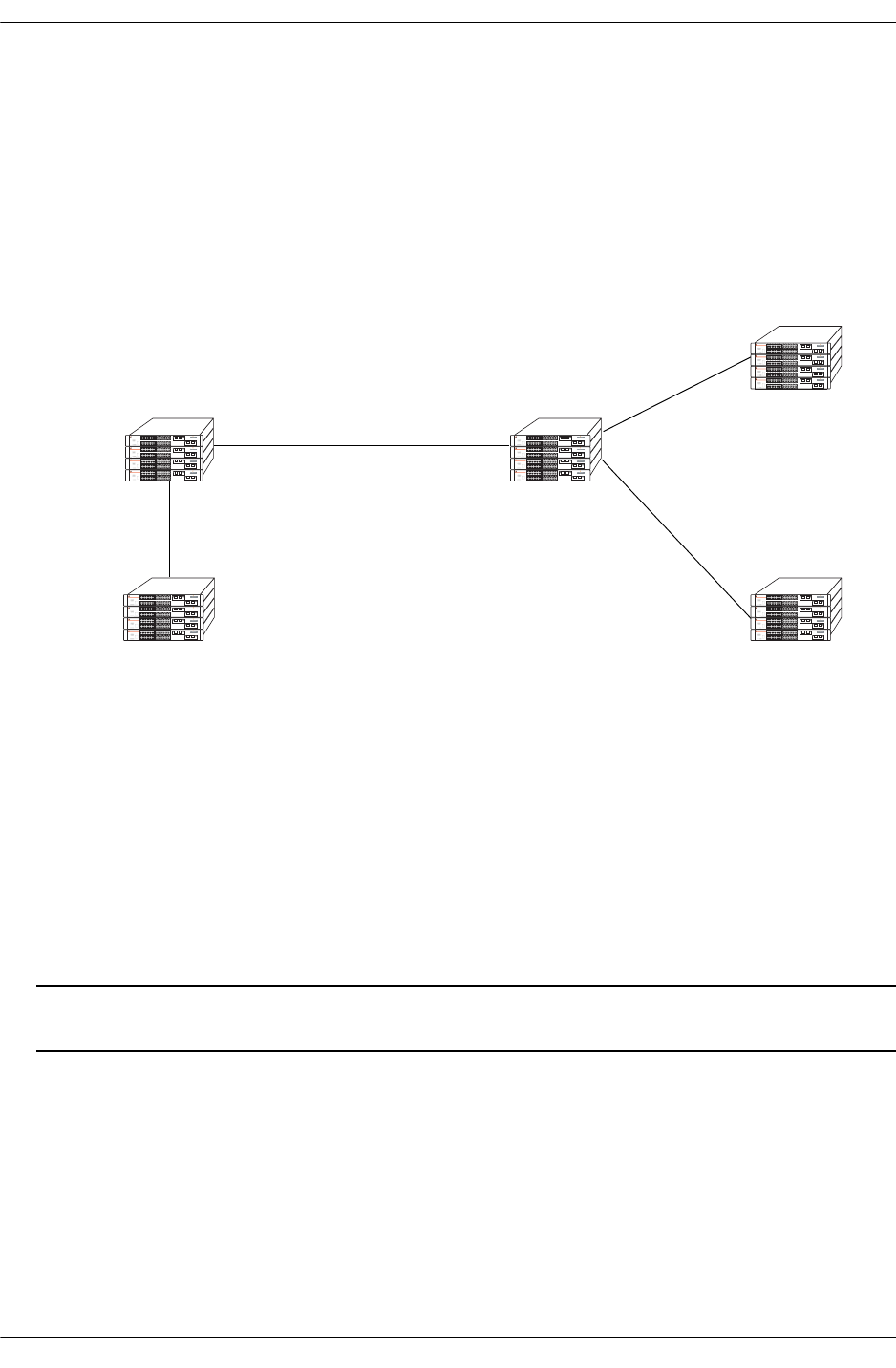

OSPF Graceful Restart Helping and Restarting Router Example
If the restarting router, Router X, was the Designated Router (DR) on network segment S when the help-
ing relationship began, the helper neighbor, Router Y, maintains Router X as the DR until the helping rela-
tionship is terminated. If there are multiple adjacencies with the restarting Router X, Router Y will act as a
helper on all other adjacencies.
Continuous forwarding during a graceful restart depends on several factors. If the secondary module has a
different router MAC than the primary module, or if one or more ports of a VLAN belonged to the
primary module, spanning tree re-convergence might disrupt forwarding state, even though OSPF
performs a graceful restart.
Note. See “Configuring Redundant Switches in a Stack for Graceful Restart” on page 1-31 for more infor-
mation on configuring graceful restart.
Restarting Router X
Network Segment S
Helping Router Y
Router A
Router B
Router C
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
OmniSwitch 6648
