AOC 919Sw-1 Computer Monitor User Manual



4
English

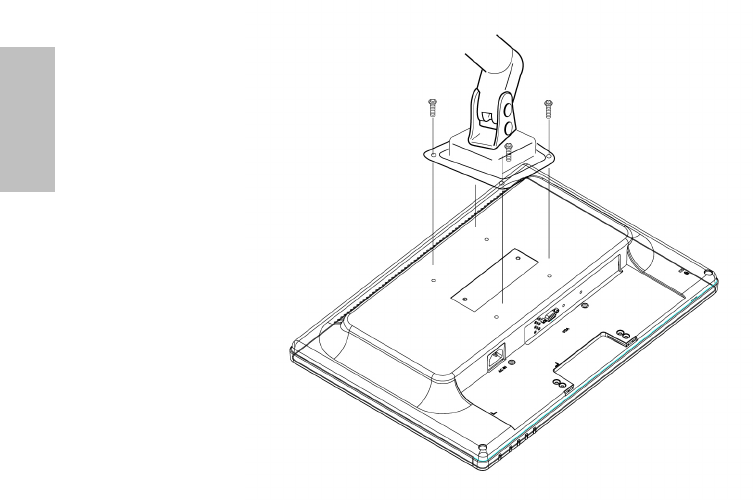

Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to finish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the monitor. Line up the
holes of the arm with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3.
Reconnect the cables. Refer to the user’s manual that came with the
optional wall mounting arm for instrucstions on attaching it to the wall.
NOTE
The AOC 919Sw-1 is in compliance with the most current revision of the VESA
100mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard).
