Xserve Logic Board with Processor/Heatsink -
11
8. Reinstall the two ATA controller clips.
Note:

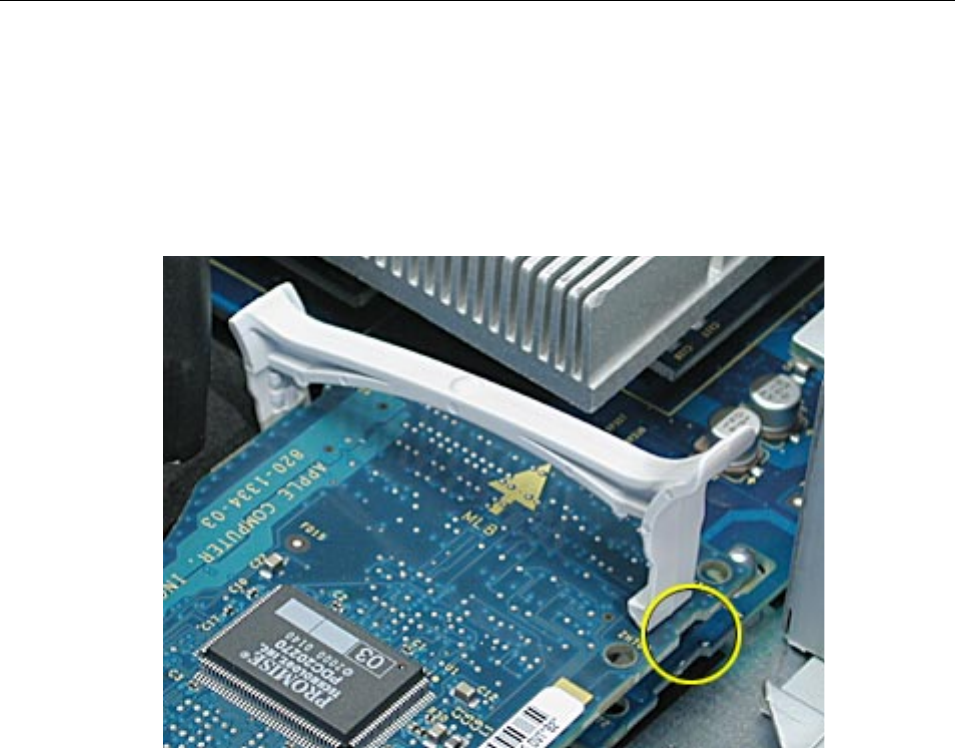

When replacing the ATA controller board clips, orient them so that the long end
of each clip points away from the middle of the server. Place the inside edge of the
clip into the small notch and then snap down the outer edge of the clip.
(Figure 13)
Figure 13
9. Replace the heatsink duct on the heatsink.
10. Reconnect the dual- and single-slot risers to the logic board.
11. Reinstall any DIMMs in the logic board memory slots.
Note:
DIMMs are designed to fit into memory slots only one way. Be sure to align the
notch in the DIMM with the small rib inside the slot.
