Xserve RAID Locking Switch -
2

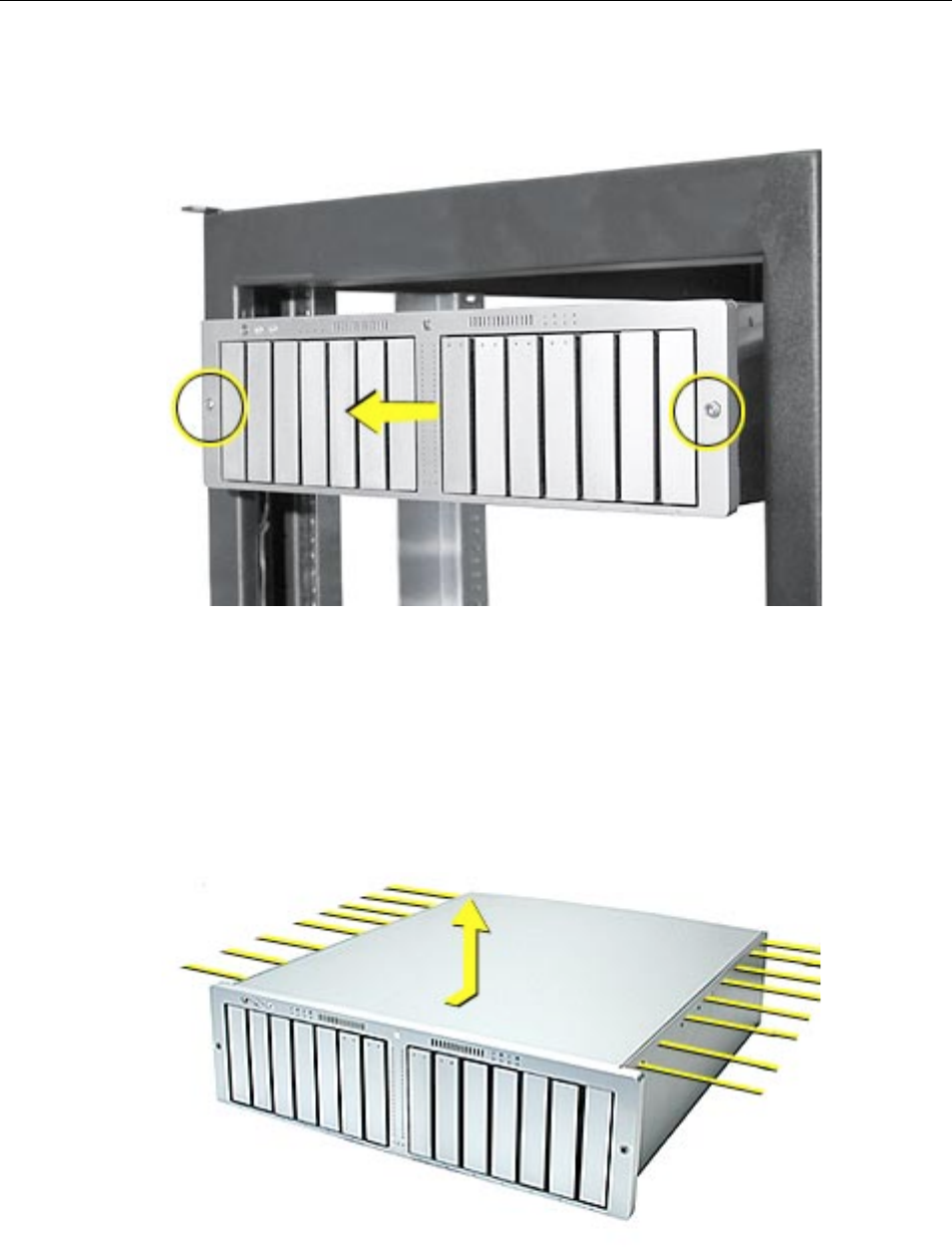

7. Remove the two screws that secure the system to the front rail of the rack.
(Figure 1)
Figure 1
8. Remove the two screws that secure the back of the system’s side panels to the rack.
9. With one person supporting each side of the unit, slide the system out of the rack and
place it on a sturdy, flat surface covered by an ESD mat.
10. Put on an ESD wrist strap.
11. Remove the 16 mounting screws on the left and right sides of the top cover.
(Figure 2)
Figure 2
12. Slide the top cover a short distance toward the back of the unit.
13. Lift the top cover straight up off the enclosure.
