iMac (17-inch Mid 2006/Late 2006 CD ) Take Apart — Hard Drive 77
Replacing the Hard Drive
If necessary, install two mounting pins on side of the hard drive mounting bracket.
If necessary, install the mounting bracket to the top of the hard drive with two screws.
Connect the hard drive power and data cables.
Insert the hard drive mounting pins and position the drive on the chassis. Make sure the
hard drive power and data cables are routed correctly and don’t get pinched as you lower
the drive into the chassis. Press down on the mounting bracket to lock it in place on the
chassis.
Replace the display panel.
Replace the lower EMI shield.
Replace the front bezel.
Replace the access door.
1.
2.
3.
4.
5.
6.
7.
8.

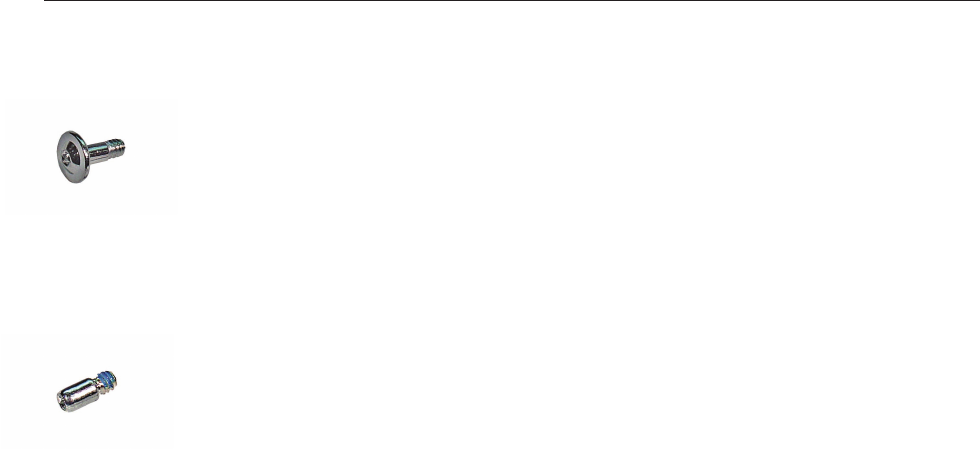

922-7019
922-7001
