Apple 500 Personal Computer User Manual



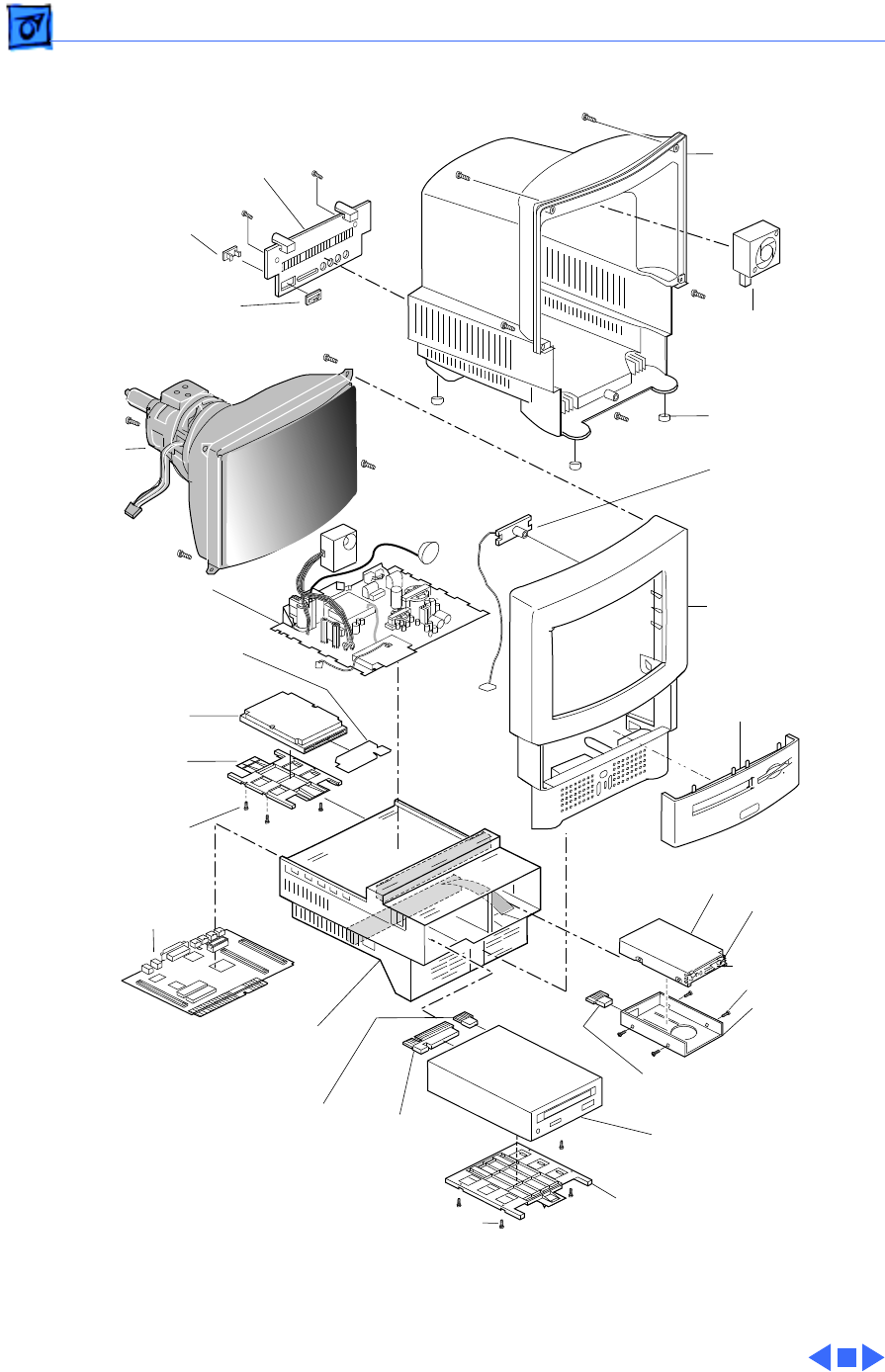

Exploded View 1
Screw (4)
Screw (4)
Screw (4)
Screw
Screw (5)
Hard Drive*
Hard Drive
Carrier
922-0621
Hard Drive
Connector Adapter
922-1820
Rear Housing
922-1835
Fan
922-1803
Feet
865-0051
Internal
Microphone
Assembly
922-1802
Front Bezel
922-1834
922-0715 (P560)
Drive Bezel
922-0558
Floppy Drive
Shield (metal)
Floppy
Drive
661-0121
Floppy
Drive
Carrier
922-0445
Floppy Drive
Connector Adapter
CD
Audio
Adapter
922-1822
CD-ROM Drive
661-0913
661-1646
661-0023
CD-ROM
Drive Carrier
922-0850
CD
Connector
Adapter
922-1821
Chassis
Harness
Assembly*
Logic Board
661-1830
Analog Board
661-0192
CRT
661-1667
(Australian)
661-1668
661-1666
I/O Door Assembly
922-0704
922-1827
Rear Case
Access Cover
815-1154
Rear Case
Access
Cover Shield
805-0137
This is a generic representation of a product family. Configurations may vary.
For number of part with asterisk, see parts list.
