1-22

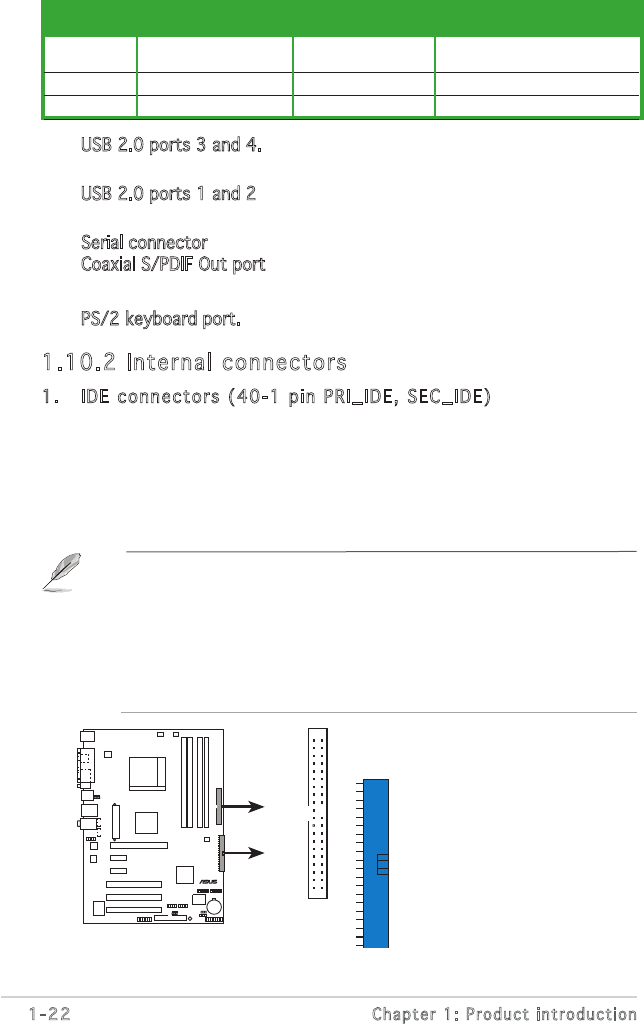

Chapter 1: Product introduction
1.10.2 Internal connectors
1. IDE connectors (40-1 pin PRI_IDE, SEC_IDE)
This connector supports the provided UltraATA133 IDE hard disk
ribbon cable. Connect the cableʼs blue connector to the primary
(recommended) or secondary IDE connector, then connect the gray
connector to the UltraATA133 slave device (hard disk drive) and the
black connector to the UltraATA133 master device.
• Follow the hard disk drive documentation when setting the device in
master or slave mode.
• Pin 20 on each IDE connector is removed to match the covered hole
on the UltraATA cable connector. This prevents incorrect orientation
when you connect the cables.
• The hole near the blue connector on the UltraATA cable is intentional.
A8S-XSE
®
A8S-X SE IDE Connectors
SEC_IDE
PRI_IDE
7. USB 2.0 ports 3 and 4. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
8. USB 2.0 ports 1 and 2. These two 4-pin Universal Serial Bus (USB)
ports are available for connecting USB 2.0 devices.
9. Serial connector. This 9-pin COM1 port is for serial devices.
10. Coaxial S/PDIF Out port. This port connects an external audio output
device via a coaxial S/PDIF cable.
11. PS/2 keyboard port. This purple connector is for a PS/2 keyboard.
Headphone/2-Speaker 4-Speaker 6-Speaker
Light Blue Line In Surround Out Surround Out
Lime Line Out Front Speaker Out Front Speaker Out
Pink Mic In Mic Center/Bass
Audio 2, 4 or 6-channel configuration
