2-12 Chapter 2: Hardware information
2.4 System memory
2.4.1 Overview
The motherboard comes with four Double Data Rate 2 (DDR2) Dual Inline Memory
Modules (DIMM) sockets.
A DDR2 module has the same physical dimensions as a DDR DIMM but has a
240-pin footprint compared to the 184-pin DDR DIMM. DDR2 DIMMs are notched
differently to prevent installation on a DDR DIMM socket.

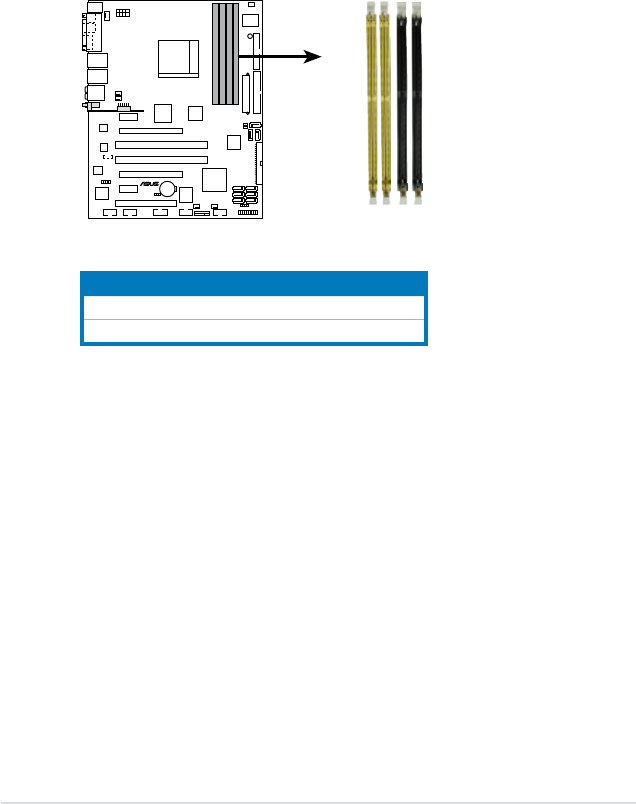

The gure illustrates the location of the DDR2 DIMM sockets:
Channel Sockets
Channel 1 DIMM_A1 and DIMM_B1
Channel 2 DIMM_A2 and DIMM_B2
M2N32 WS PRO
®
M2N32 WS PRO 240-pin DDR2 DIMM sockets
DIMM_B1
DIMM_A1
DIMM_B2
DIMM_A2
