ASUS P5KPL-VM 1-13
3. Connect the CPU fan cable to the connector on the motherboard labeled
CPU_FAN.

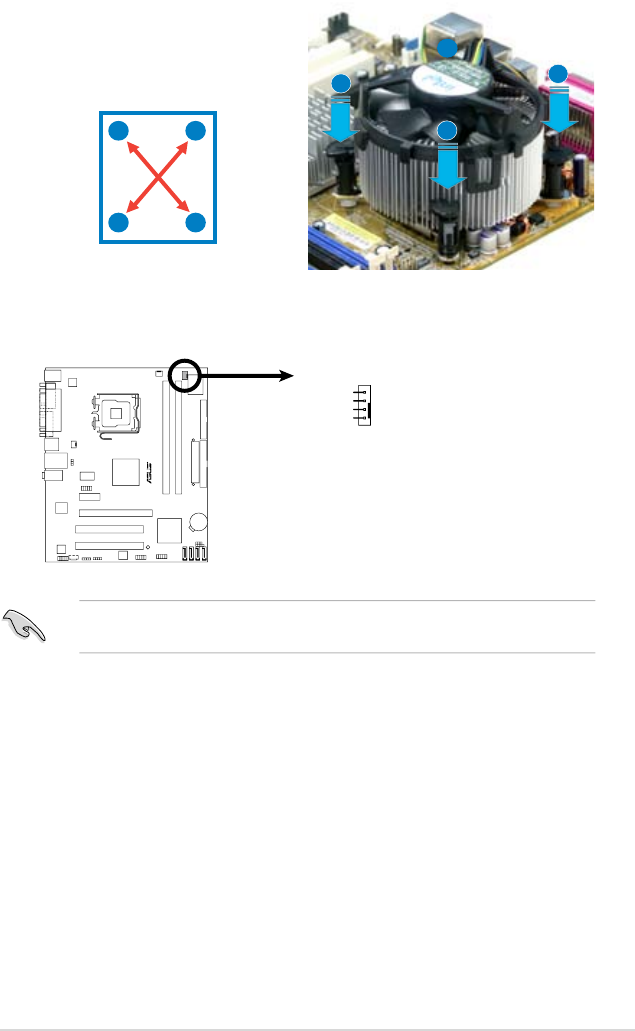

2. Push down two fasteners at a time in
a diagonal sequence to secure the
heatsink and fan assembly in place.
B
A
A
A
B
B
Do not forget to connect the CPU fan connector! Hardware monitoring errors
can occur if you fail to plug this connector.
A
B
P5KPL-VM
R
P5KPL-VM
CPU Fan Connector
GND
CPU FAN PWR
CPU FAN IN
CPU FAN PWM
CPU_FAN
