ASUS P8Z77-V LE 2-39
Chapter 2
2.3.10 Rear panel connection
• Due to USB 3.0 controller limitation, USB 3.0 devices can only be used under
Windows
®
OS environment and after the USB 3.0 driver is installed.
•
Due to Intel
®
limitations, the USB3_3-4 only support Windows
®
7 operating system.
•
The USB3_4 port supports USB Charger+ and USB BIOS Flashback.
• USB 3.0 devices can be used as data storage only.
• We strongly recommend that you connect USB 3.0 devices to USB 3.0 ports for faster
and better performance for your USB 3.0 devices.
* and **: Refer to the tables on the next page for LAN port LED and audio port denitions.

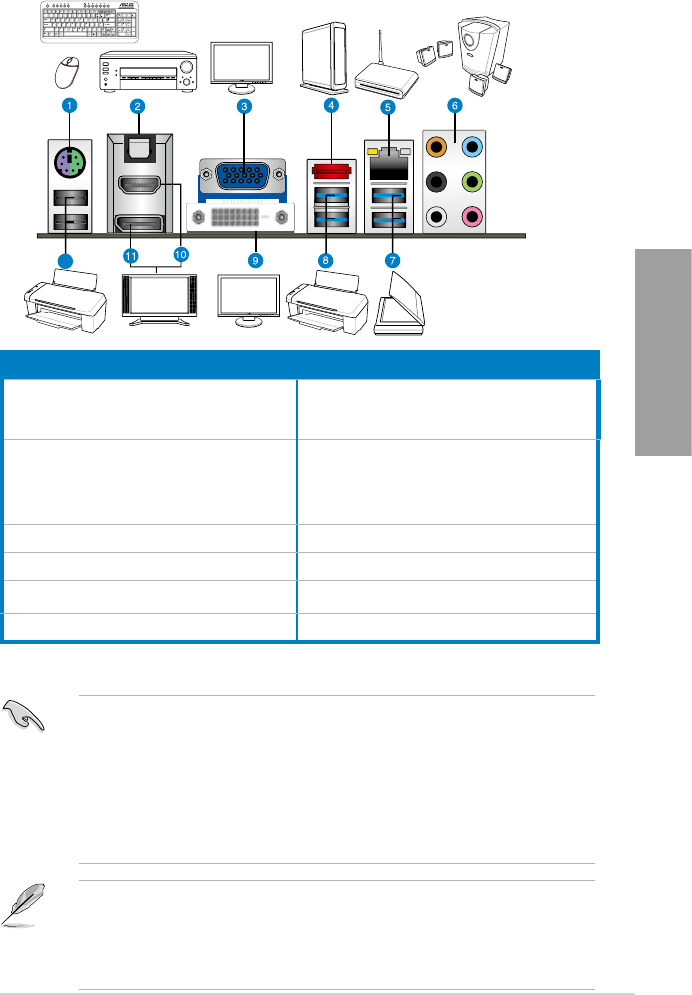

Rear panel connectors
1. PS/2 Keyboard/Mouse COMBO port
7. ASMedia USB 3.0 ports 1 and 2, support
ASUS USB 3.0 Boost UASP Mode
2. Optical S/PDIF Out port
8. Intel USB 3.0 ports 3 and 4, support ASUS
USB 3.0 Boost UASP Mode. The bottom
port supports USB BIOS Flashback and USB
Charger+.
3. Video Graphics Adapter (VGA) port 8. DVI port
4. External SATA 6G ports 9. HDMI port
5. Intel
®
LAN (RJ-45) port* 10. DisplayPort
6. Audio I/O ports** 11. USB 2.0 ports 1 and 2
• This motherboard comes with multiple VGA output that features desktop extension on
two monitors. You can connect two monitors to any two of the onboard VGA, DVI-D,
HDMI and DisplayPort ports.
• DVI-D can not be converted to output RGB signal to CRT and is not compatible with
DVI-I.
