Axis Communications P1354 Webcam User Manual



AXIS P13 Series
Power Consumption
Products
DC
PoE
AXIS P1354 8-28 V DC
max 7.2 W
IEEE 802.3af/802.3at Type 1 Class 3
AXIS P1357 8-28 V DC
max 7.9 W
IEEE 802.3af/802.3at Type 1 Class 3
Connectors

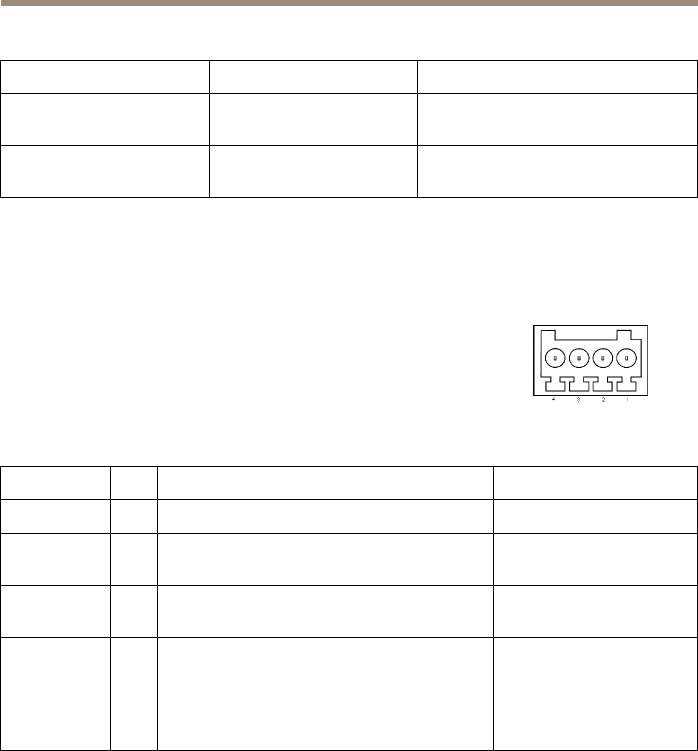

I/O Connector
4–pin terminal block
For an example diagram, see Connection Diagrams on page 16.
Function Pin Notes
Specications
0 V DC (-)
1
DC output
2
Can be used to power auxiliary equipment.
Note: This pin can only be used as power out.
3.3 V DC
Max load = 50 mA
Digital Input
3
Connect to pin 1 to activate, or leave oating
(unconnected) to deactivate.
0 to max 40 V DC
Digital
Output
4
Connected to pin 1 when activated, oating
(unconnected) when deactivated. If used
with an inductive load, e.g. a relay, a diode
must be connected in parallel with the load,
for protection against voltage transients.
0 to max 40 V DC, open
drain, 100 mA
Power Connector
2-pin terminal block for power input. Use a Safety Extra Low Voltage (SELV) compliant limited
power source (LPS) with either a rated output power limited to 100 W or a rated output current
limited to 5 A.
