Page 6 AXIS P7214/P7210 Installation Guide

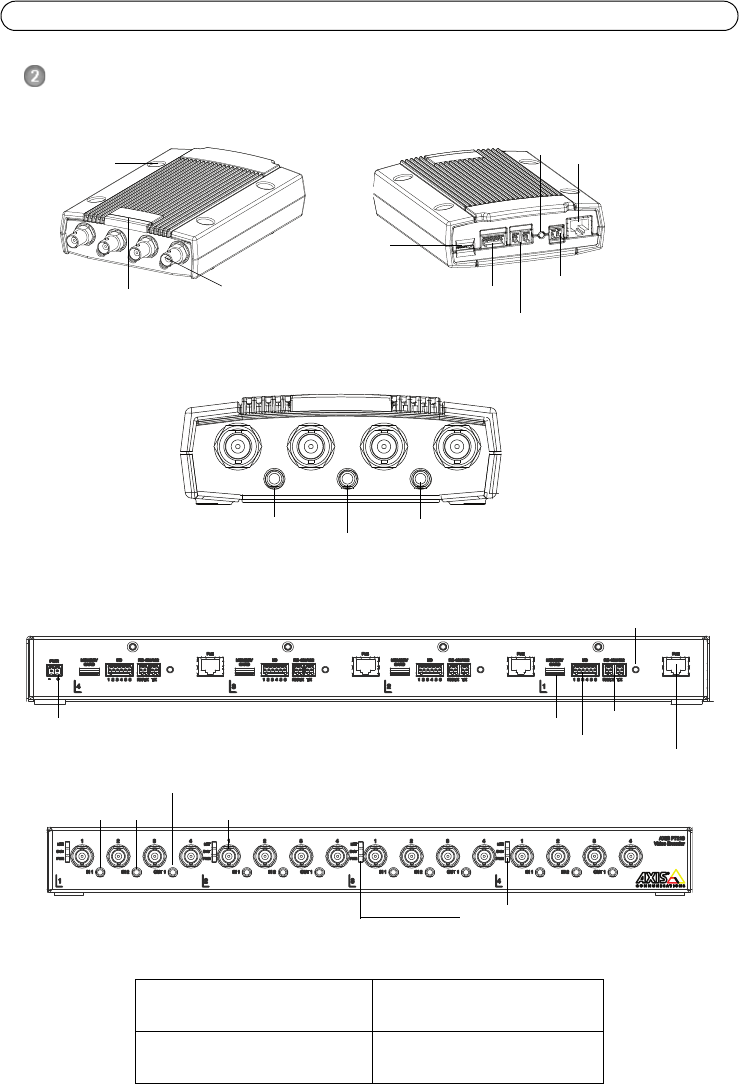

Hardware overview
Dimensions
AXIS P7214
HxWxD = 37x109x172
Weight = 570g (1.26 lbs)
AXIS P7210
HxWxD = 45x440x165
Weight = 2540g (5.6 lbs)
Mounting holes
power, status, network
LED indicators for
Power connector
RS-485/RS-422 connector
Network connector (PoE)
Control button
I/O connector
microSD memory
card slot
Video input connectors
Front view Rear view
2
3
4
1
IN 1 IN 2 OUT 1
Audio input 1
Audio output 1
AXIS P7210
Audio input 2
AXIS P7210 - rear view
Network connector (P0E)
Control button
RS-485/RS-422
I/O connector
microSD card slot
Power connector
- front view
Video input
Audio inputs 1 and 2
Audio output 1
Group 1 Group 2 Group 3 Group 4
(4 video input connectors)
LED indicators
Front view
AXIS P7214
