6
5
3
4
2
1

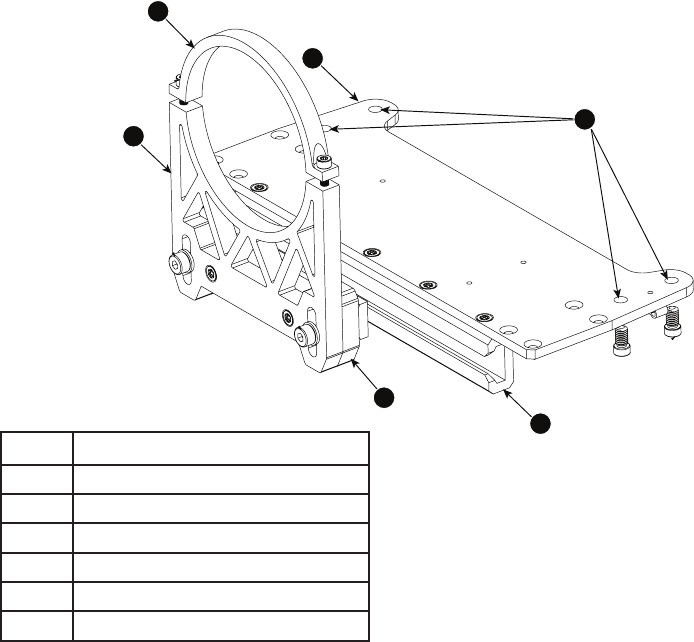

Item Description
1 Baseplate
2 Mounting screws (4 pcs M6 x 12)
3 Shim
4 Sliding rail
5 Lower lens ring bracket
6 Upper lens ring bracket
• Use caution when tightening screws. Applying too much force may cause
damage to the lens or lens support.
• It is recommended that zoom, focus and iris positions are locked using
their respective Z-lock screw (tool: 1.5mm allen key) before mounting the
lens support.
• Lens shi should be disabled in the projector (service) menu aer
mounting the lens support kit. Contact your Barco service representative
for assistance if required.
Lens Support Kit
General advice
Installation
