Barco R9000901 Projector User Manual



Projector setup
5-3
5975996 BARCOGRAPHICS 808s 241197

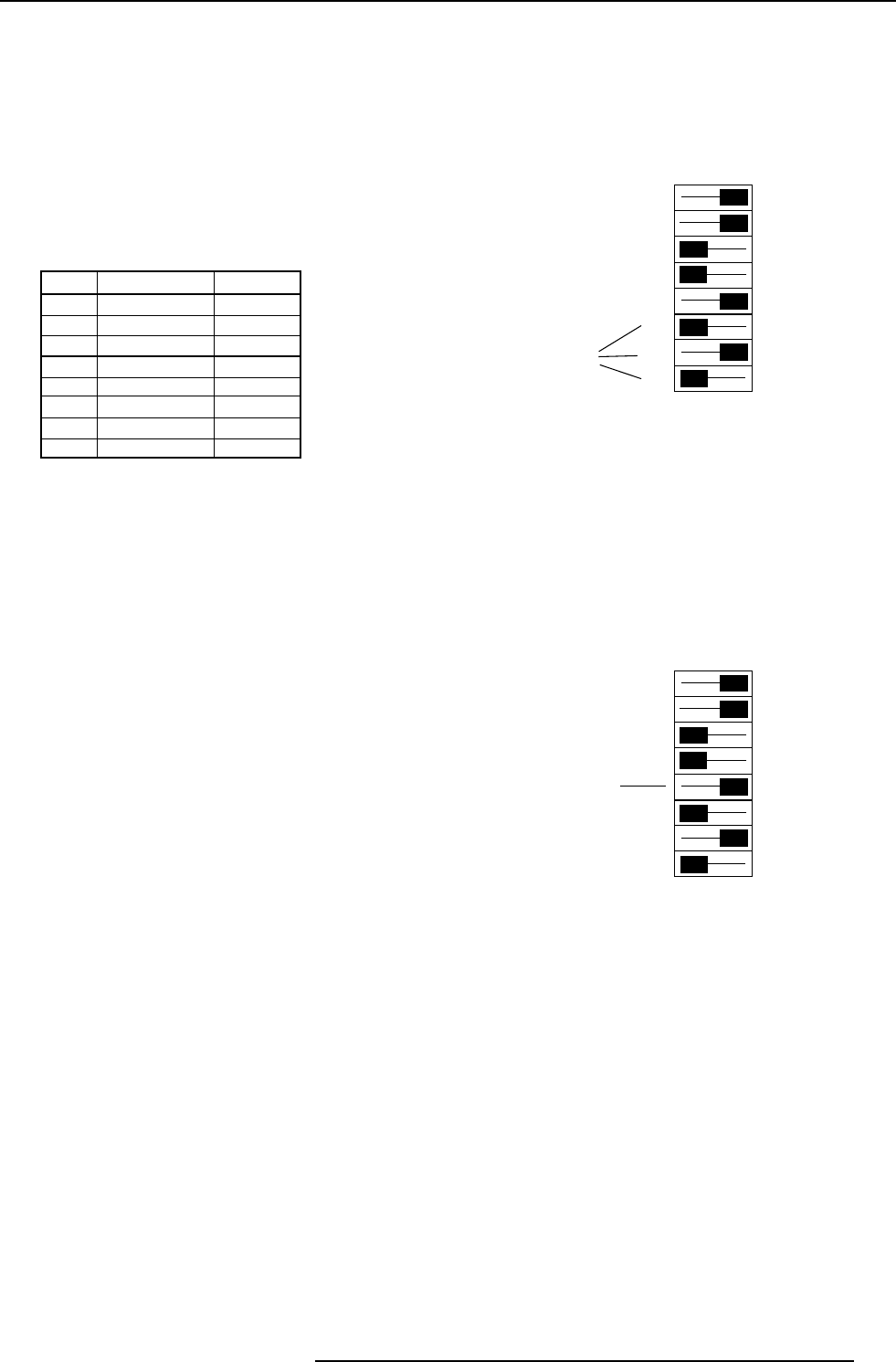

Position of DIP switches and baud rate codes :
Baud Rate for communication with a
computer
The communication speed between the projector and the computer
has 8 possible settings. With DIP Switch No. 6, No.7 and No.8 of the
8 DIP switches on the controller board, labelled as Baud rate code
(sum), it is possible to select the baud rate (communication speed).
Each DIP switch has its own decimal value. The sum of the values
associated to those DIP switches gives the baud rate code. Each
baud rate code corresponds an communication speed.
1
2
3
4
5
6
7
8
OFF
ON
0
1
Baud rate
DIP switches
4
2
1
Password mode
With DIP Switch No.5 of the second set of 8 DIP switches on the
controller board, the projector adjustments can be protected with a
password. When the password feature is enabled, the user has to
enter a password before he can enter the adjustment mode (For more
information about password setting and reprogramming the pass-
word, see Installation Adjustment).
When the password menus are disabled (adjust mode is unpro-
tected), the adjust mode can be selected by pressing the <ADJUST>
key. This position of the DIP switch is useful for qualified service
technicians because they do not need a password to enter the adjust
mode.
Position of DIP Switch No.5 :
ON : password mode enabled.
OFF : password mode disabled.
Factory preset password mode : OFF.
Factory preset baud rate = 9600
More information about computer communication with the
BARCOGRAPHICS 808s is available in the Projector Control Soft-
ware manual.
Password
mode
1
2
3
4
5
6
7
8
OFF
ON
0
1
Binary Baud rate code Speed
000 0 110
001 1 150
010 2 300
011 3 600
100 4 1200
101 5 2400
110 6 4800
111 7 9600
