VoIP/(802.11g) ADSL2+ (VPN) Firewall Router
Chapter 4: Configuration
Step 3: Setup VLAN Service

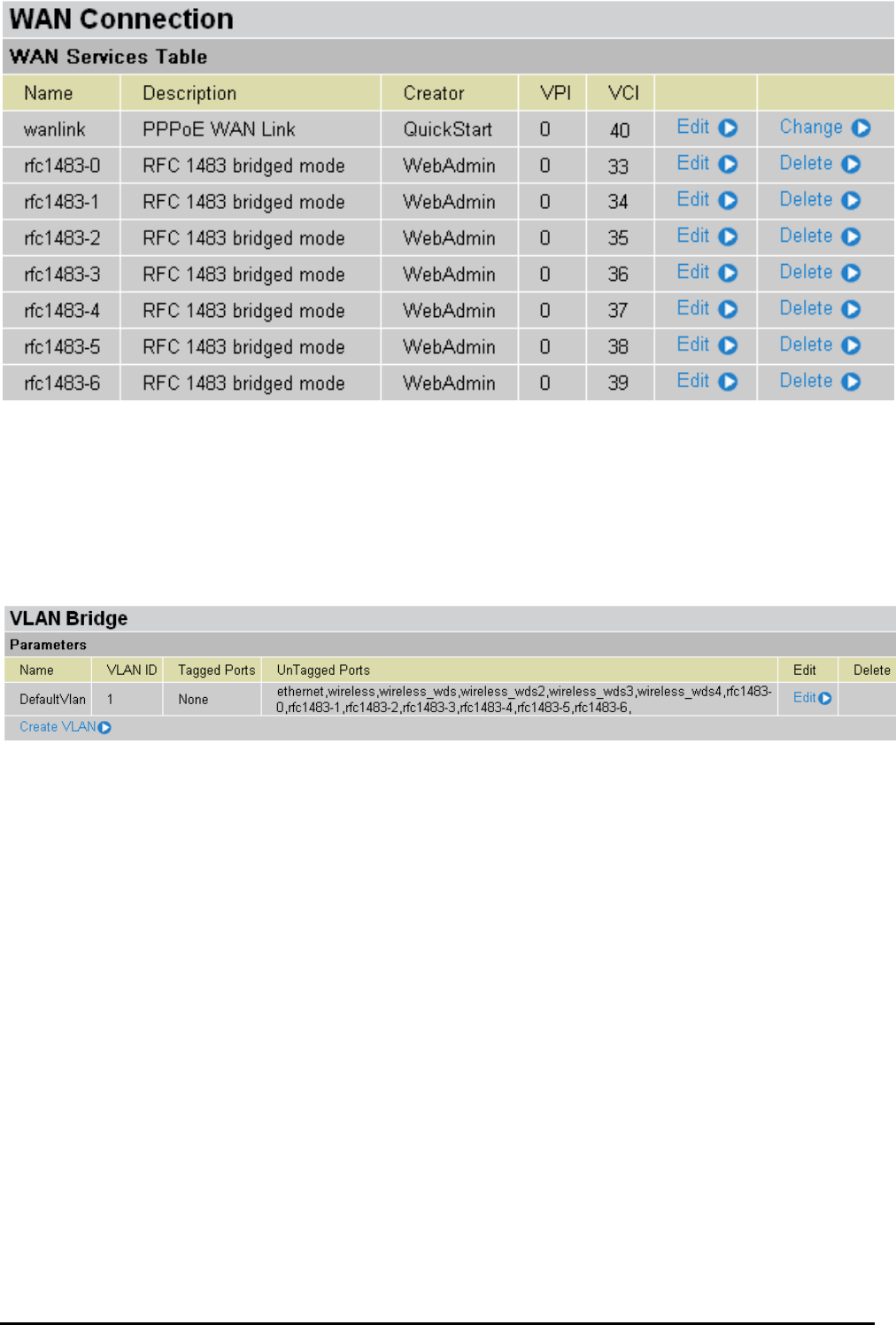

Go to Configuration Advanced VLAN Bridge
DefaultVlan lists all member ports. It is necessary to group specific member ports for each VLAN.
From the example, two VLAN groups are requested: Data and Video.
To create another VLAN group for Video by clicking Create VLAN.
Given a name and ID (PVID) to identify the Video group and the valid value range for PVID is 1 ~ 4094.
From the example:
VLAN untagged ports for Data/Internet: ethernet, wireless and wireless_wds.
VLAN untagged ports for Video: ethernet1, rfc-1483-0 ~ rfc-1483-6.
Click Apply to made change effective immediately.
146
