LE180A
8
Black Box Network Services, 724-746-550, www.blackbox.com
Operations
LEDs

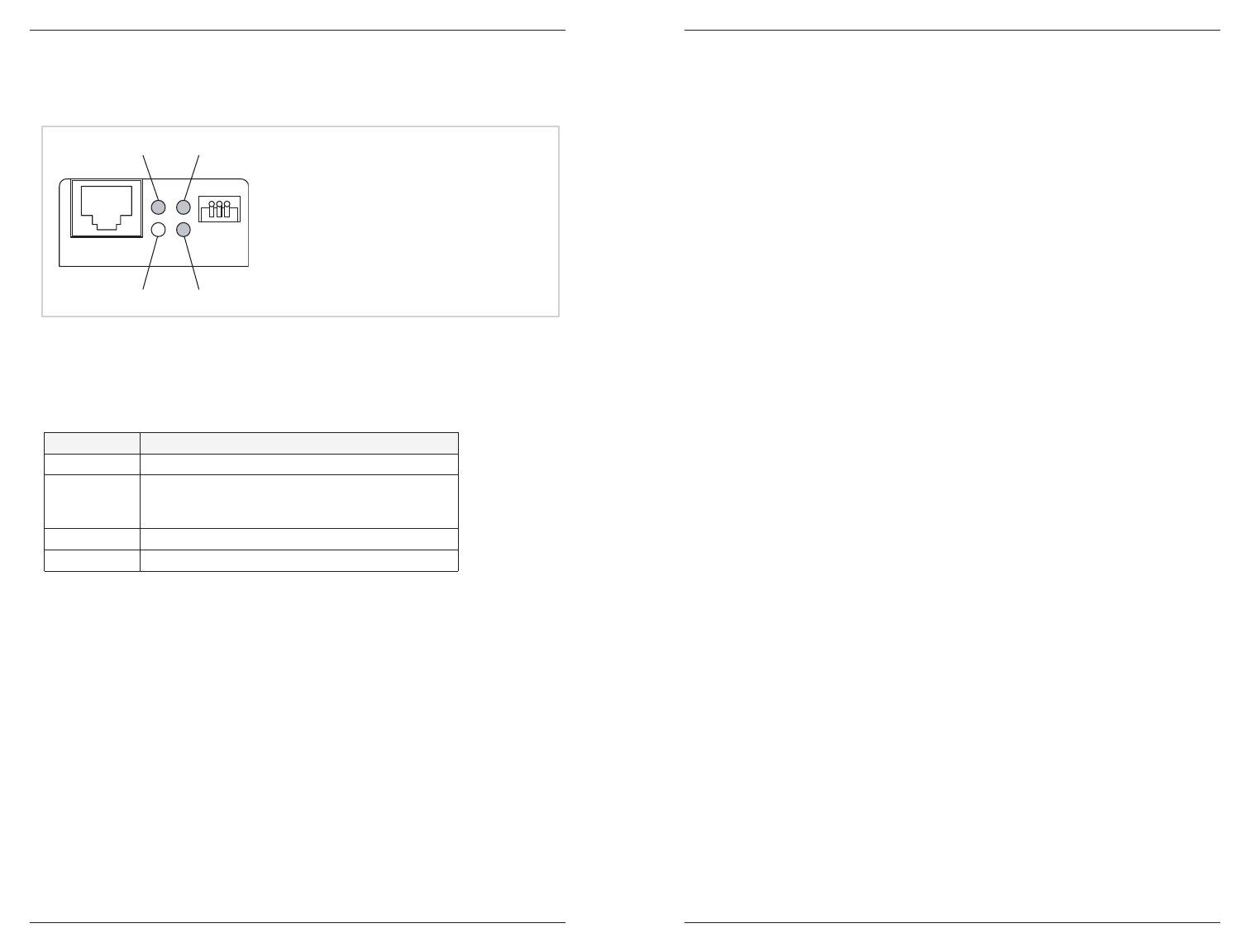

Figure 9 shows the LE180A LEDs:
The LE180A LEDs display the operational status of the transceiver. The following
table explains LED indications.
Figure 9: LE180A LEDs
Status
Collision Transmit
Receive
LED Description
Collision Blinks when detects a collision
Status ON Solid: UTP link established
Blinks: No UTP link
5-Blink pattern: UTP polarity reversal*
Transmit Blinks when transmitting data on the RJ-45 cable
Receive Blinks when receiving data on the RJ-45 cable
*Note: The LE180A corrects reverse polarity on its receiving port UTP cable
automatically.
Black Box Network Services, 724-746-550, www.blackbox.com
9
LE180A
Technical Specifications
For use with Black Box Model LE180A or equivalent.
Standards IEEE 802.3ab, IEEE 802.3
Data Rate 10 Mb/s
Dimensions 1.77" x 0.81” x 3.14" (44.96 mm x 20.57mm x 79.76mm)
Weight 0.2 lbs. (90.72 g) approximately
Power Consumption 500mA @ 12VDC
Power Source AUI port
Operating Temp 0 to 50°C (32°F to 122°F )
Storage Temp: -25 to 85°C (-13°F to 185°F )
Humidity: 5 to 95%, non-condensing
Altitude: 0 to 10,000 feet
MTBF: 125,126 Bellcore hours. Calculated at 40C with a 10C
temperature rise.
IMPORTANT Copper based media ports: e.g., Twisted Pair (TP) Ethernet, USB,
RS232, RS422, RS485, DS1, DS3, Video Coax, etc. are intended connecting to intra-
building (inside plant) link segments, not subject to lightening transients or power
faults. Copper based media ports: e.g., Twisted Pair (TP) Ethernet, USB, RS232,
RS422, RS485, DS1, DS3, Video Coax, etc. are NOT for connecting inter-building
(outside plant) link segments that are subject to lightening transients or power faults.
Failure to observe this notice could result in damage to equipment.
