INTRODUCTION
FAX 580MC and MFC 660MC

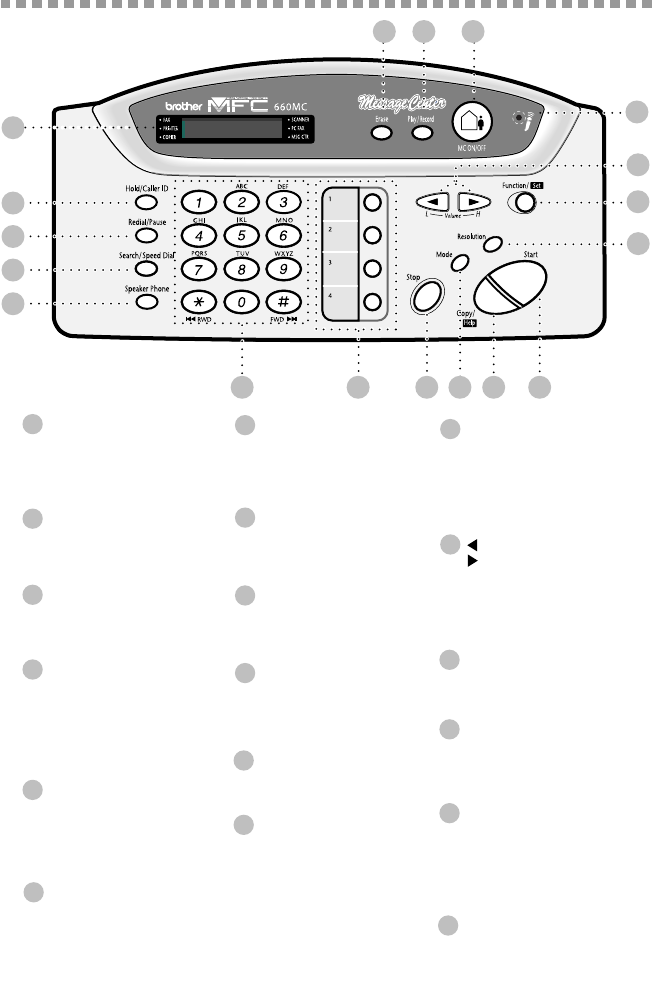

Control Panel Overview
SIX
IN
ONE
6
3
4
5
2
1
1
7
10 11
8 9
12
LCD (Liquid Crystal
Display)
Displays messages to help
you set up and
operate your fax machine.
5
Speaker Phone
Lets you speak to the
person at the other end
and dial telephone
numbers without lifting
the handset.
4
Search/Speed Dial
Lets you dial stored phone
numbers by pressing #
and a two-digit number.
Also lets you look up
numbers stored in the
dialing memory.
3
Redial/Pause
Re-dials the last number
called. Also inserts a
pause in autodial numbers.
2
Hold/Caller ID
Lets you put calls on hold.
Also, lets you view or
print the Caller ID list.
6
Dial Pad
Dials phone and fax
numbers, and can be used
as a keyboard for entering
information into the fax
machine.
10
Copy/Help
Makes a copy. If no
originals are in the
ADF, it prints a quick
reference Help List.
9
Mode
Use to select how fax
machine will handle
incoming calls.
8
Stop
Stops a fax, cancels an
operation or exits from
Function mode.
7
One Touch Dial Keys
These four keys give you
instant access to
previously stored phone
numbers.
11
Start
Starts an operation, such
as sending a fax.
14
(Left Arrow)
(Right Arrow)
Volume
Moves the LCD cursor to
the left or right. Adjusts
speaker, ring and handset
volume.
13
Function/Set
Lets you access the
function and
programming mode.
Also, stores a function
setting into the fax
machine.
12
Resolution
Sets the resolution when
you send a fax or make a
copy.
13
14
17
Play/Record
Lets you listen to voice
messages and print fax
messages stored in
memory.
Also, lets you record
telephone calls.
16
MC ON/OFF
Lets you activate the
Message Center.Also,notifies
you that you have voice or
fax messages in the memory.
15
Microphone
Picks up your voice when
you speak to another party
using speakerphone.
