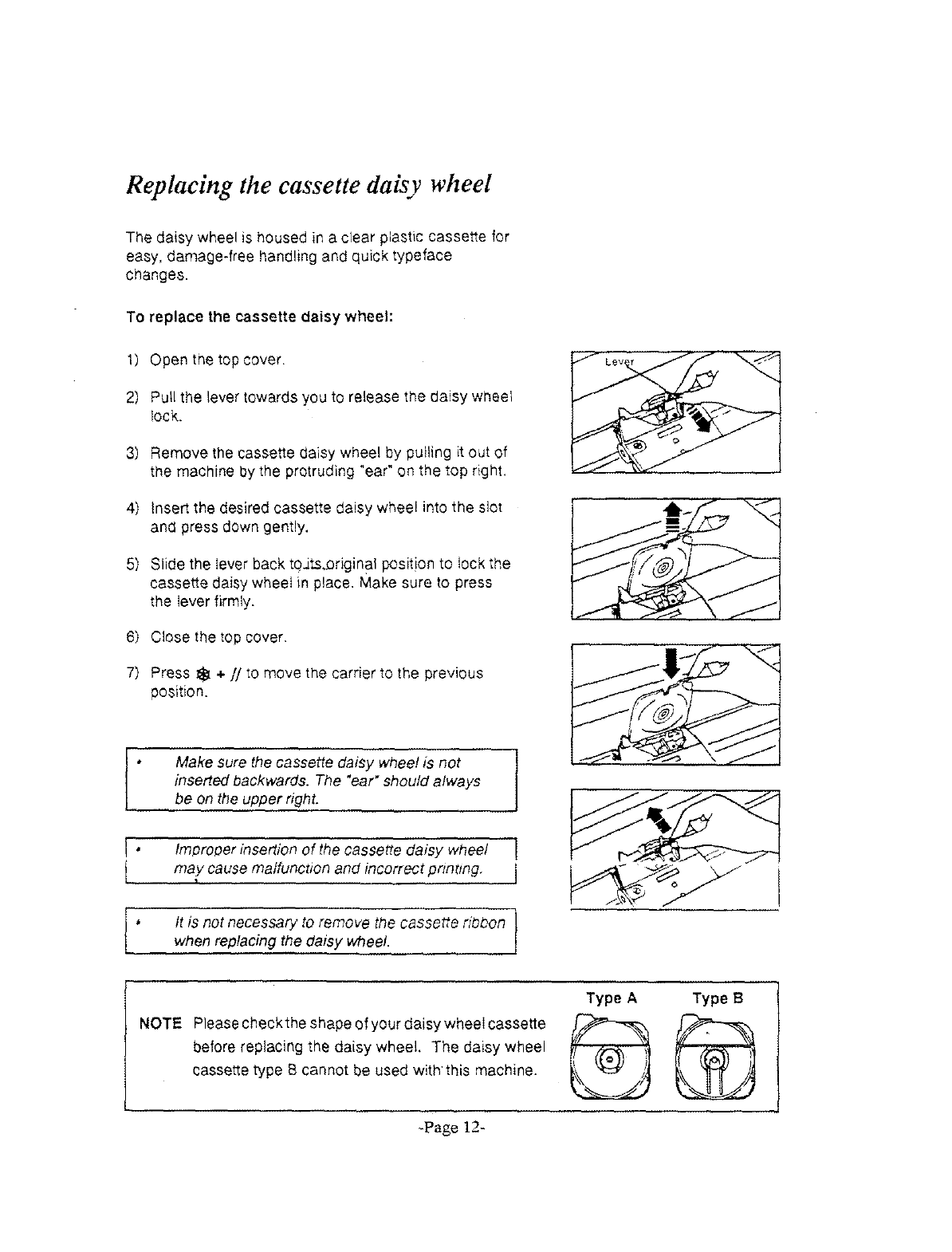

Replacing the cassette daisy wheel
The daisy wheel is housed in a clear plastic cassette for
easy, damage-free handling and quick typeface
changes.
To replace the cassette daisy wheel:
1) Open the top cover.
2) Pull the lever towards you to release the daisy wheel
lock,
3) Remove the cassette daisy wheel by pulling it out of
the machine by the protruding "ear" on the top right.
4) insert the desired cassette daisy wheel into the slot
and press down gently.
5) Slide the lever back t0Jts.original position to lock the
cassette daisy wheel in place. Make sure to press
the lever firmly.
6) Close the top cover.
7) Press _ +//to move the carrier to the previous
position.
Make sure the cassette daisy wheel is not
inserted backwards. The "ear" should always
be on the upper right.
[ o Imorooer insertion of the cassette daisy wheel I
[.... may cause malfunction and Incorrect pr,nt,ng. I
* It is not necessary to remove the cassette ribbon
when replacing the daisy wheel.
NOTE Please checkthe shape of your daisy wheel cassette
before replacing the daisy wheel. The daisy wheel
cassette type B cannot be used with'this machine.
Type A Type B
-Page 12-
