Cisco SFS 7012 InfiniBand Server Switch Hardware Users Guide
OL-8787-04
Chapter
Note If the spine module RS-232 port is connected to a terminal emulation program, the user will be able to
view the switch boot process. Be certain to use a null-modem/crossover serial cable for the console port.
The settings for the terminal emulation device should be:
–
8 data bits
–
no parity bits
–
1 stop bit
–
56K baud
–
Use VT100 emulation.
–
Flow control = XON/XOFF

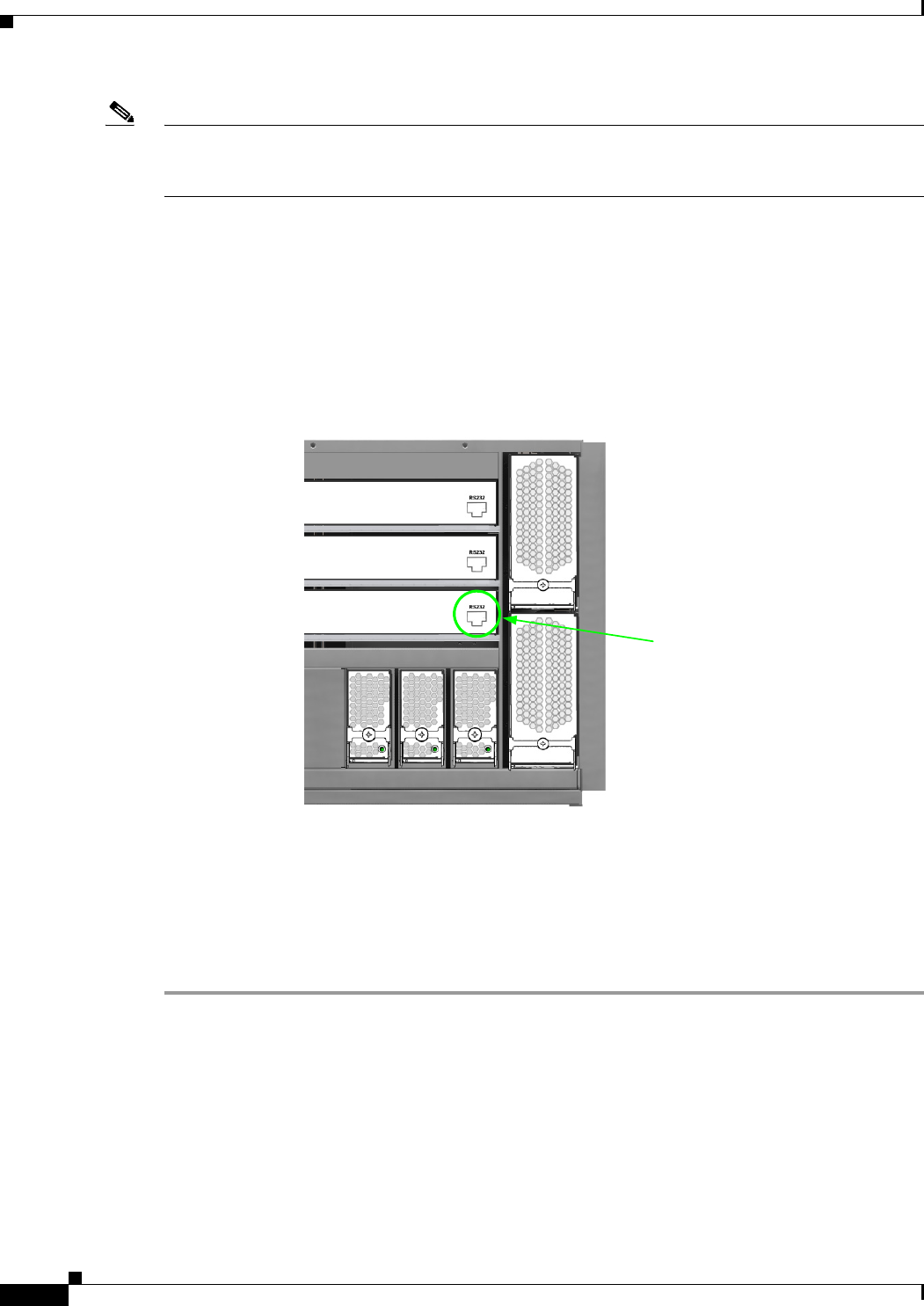

Figure 2-14 SFS 7012 RS-232 Connector
Step 3 Verify the IP address with the command line interface (CLI) command showChassisIpAddr
command. The system returns the information similar to the following:
Chassis IP Address: 192.168.100.9 Net mask: 0xffffff00
Changing the SFS 7012 IP Address and Default Gateway via the CLI
The CLI can be accessed via Telnet, SSH, or through the SFS 7012 RS232 serial ports.
Step 1 Connect null-modem/crossover serial cables to the RS-232 ports of the SFS 7012. If using a terminal
emulation device, the settings should be:
–
8 data bits
–
no parity bits
–
1 stop bit
–
56K baud
–
Use VT100 emulation.
–
Flow control = XON/XOFF
1 (Managed)
Spine Module
RS-232 Port
Fan
3
Fan
1
PS
3
PS
2
PS
1
2 (Managed)
3
(Unmanaged)
