Citizen S4000DCM Printer User Manual



— 28 —

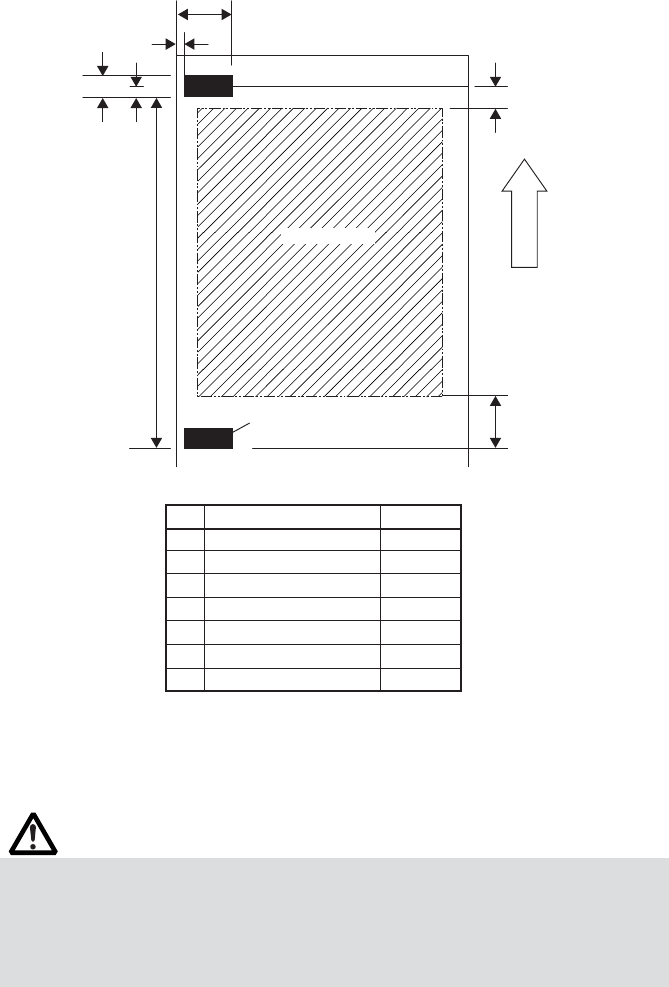

Black Mark (printed on the reverse)
b) Black mark paper (BM paper)
Cut position
Paper feeding
direction
Printable area
Mark Item Dimensions
A Right edge of black mark 15 or more
B Left edge of black mark 0 to 1.5
C Black mark height 5
D Cut position in black mark 2.5
ETop margin 6.5 / 12
F Black mark pitch 30 to 300
GBottom margin 9
Unit: mm
CAUTION!
PCS value of black mark must be 0.9 or more.
When using the black mark paper, consider the margin of +/- 2 mm for the print position
against the standard position and +/- 5 mm for print length.
Refer to the above drawing for the printable area and have enough margings specified
in the marks E and G. If the print data size is out of the printable area, the printer
should skip to next page.
* In the case of the operation that the printer cuts the paper, the top margin will be
changed by the setting of the memory switch 4-8. It is 6.5mm at 0 (OFF) and 12mm at
1(ON).
* In the case of the operation that the printer does not cut the paper, the top margin is
6.5mm.
