INSTALLATION
REAR AV Connection
SOURCE
MENU
CH+
CH-
VOL+
VOL-
1 SOURCE
Display the input source menu.
CH+ or CH- to select items in MENU.
when TV is in standby mode, press CH+ or CH- button in TV control panel will power
on the TV.
2MENU
3 CH+/CH-
4 VOL+/VOL-
To display main MENU.
In TV mode press CH+ or CH- to change the channel up and down.
In MENU,press
Adjust sound level.
In MENU,adjust the item that you selected.
CONTROL PANEL

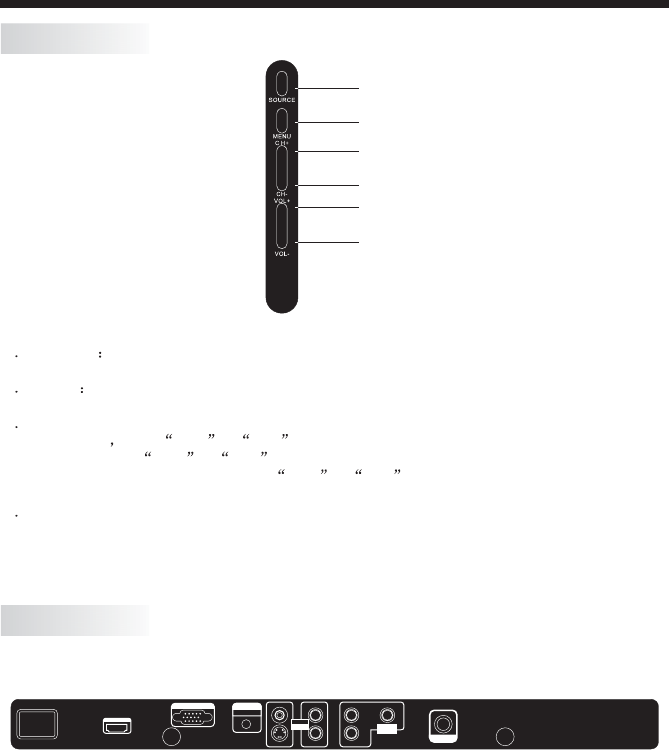

All the terminals are(from left to right):
AC POWER SOCKET,HDMI,VGA ,PC AUDIO(HDMI in DVI mode share this audio channel),
CVBS,S-VIDEO,YPbPr,ANTENNA.
Note: CVBS,S-VIDEO and YPbPr share one audio channel.
