CONNECTOR AND PIN DEFINITIONS

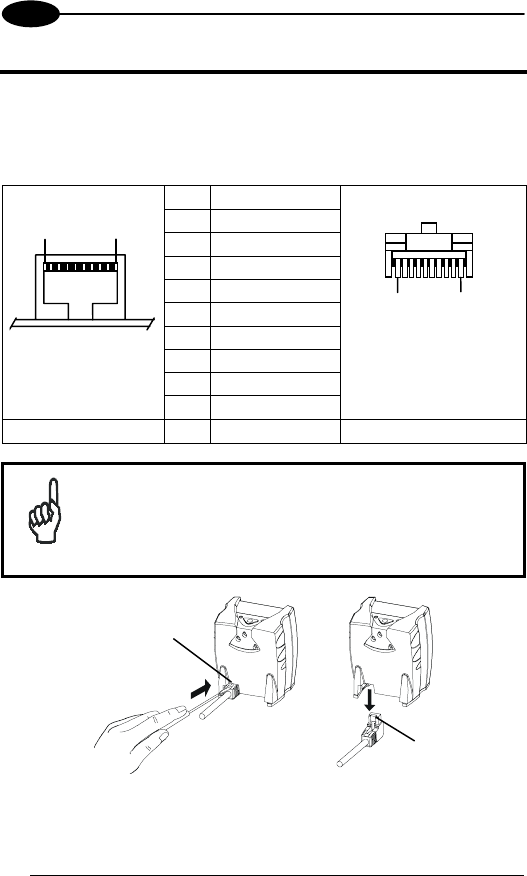

The DLL2020 has a dual interface: RS232/Keyboard Wedge. The pin
definition for the scanner port and the connector to be used for the port
are shown in the connection diagram below.
PIN DESCRIPTION
1 PC - CLOCK
2 CTS
3 RXD
4 TXD
5 RTS
6 GND
7 +5V
8 KB - DATA
Pin 10
Pin 1
RJ-48 PCB
(front view)
9 KB - CLOCK
Pin 10
Pin 1
RJ-48 Cable-connector
(front view)
Scanner port
10 PC - DATA
10 pin connector
NOTE
Use approved Datalogic cables only.
Slot for screwdriver
2
1
Locking pin
