2-10 Elo Entuitive Touchmonitor User Guide

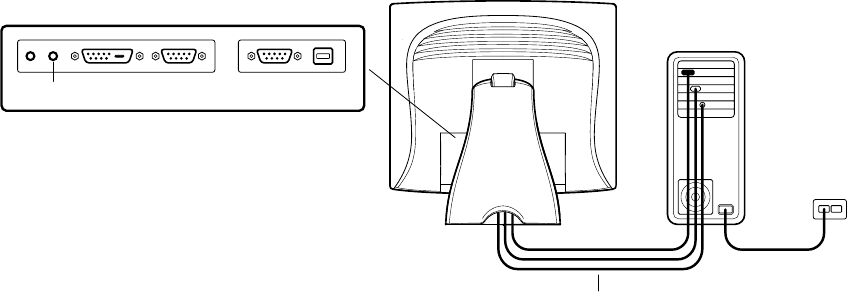

STEP 4-Connecting the Speaker Cable
Note: If you do not wish to connect the speaker cable, go to step 5.
• Connect the light blue end of the speaker cable to the light blue speaker port to the monitor (audio
in).
• Connect the lime (light green) end of the speaker cable to the lime speaker port on the computer
(audio out)
SPEAKER CABLE
SPEAKER
PORT
CONNECTIONS ON UNDERSIDE
