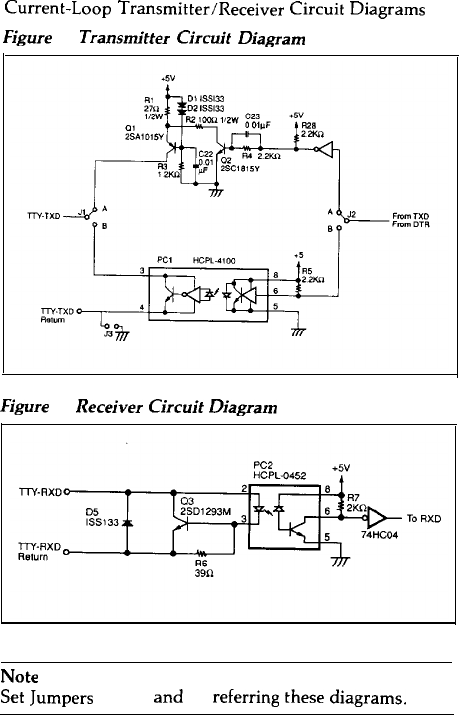

Current-Loop
Transmitter/Receiver
Circuit Diagrams
Figure
8. Transmitter Circuit Diagram
Figure
9. Receiver Circuit Diagram
Note
Set
Jumpers J1, J2, and J3 referring these diagrams.
30
