Installing the fax board in your printer
After you have set the DIP switches, install the fax board in
your printer following the instructions in your printer manual.
See the section on installing an optional interface board.

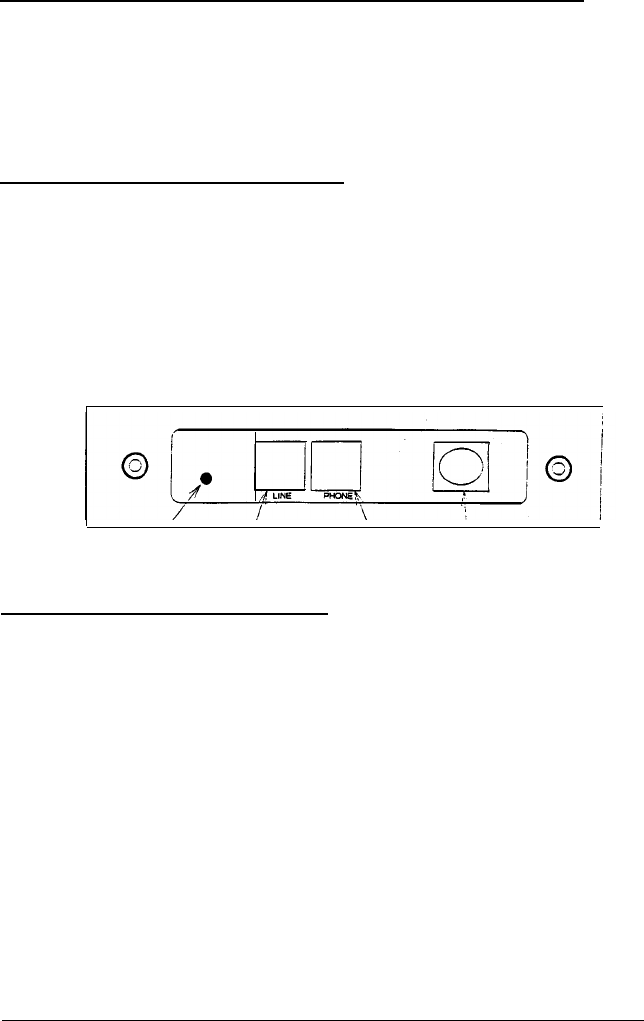

Connecting the board
After you have installed the board, connect the phone cable
included with the board to the connector labeled LINE on the
board. Plug the other end into a standard modular-type
telephone connector (jack). If you wish, you can also plug a
telephone into the connector labeled PHONE.
Manual Reception
to Phone Line to Telephone
Serial Interface
Button
Performing a self test
After you have installed the fax board in your printer, perform
a self test by following the steps below:
1.
While holding down the manual reception button on the
fax board, turn on the printer.
2.
Release the manual reception button when the printer’s
FEED indicator starts blinking.
The printer then prints a two-page self test. This shows that the
board is properly installed and gives you information about the
board and its settings.
sideview
setup 7
