3. Remove the three screws on the back of the monitor that connect the monitor panel to the pedestal
base (1) and slide the pedestal base from the monitor panel (2).

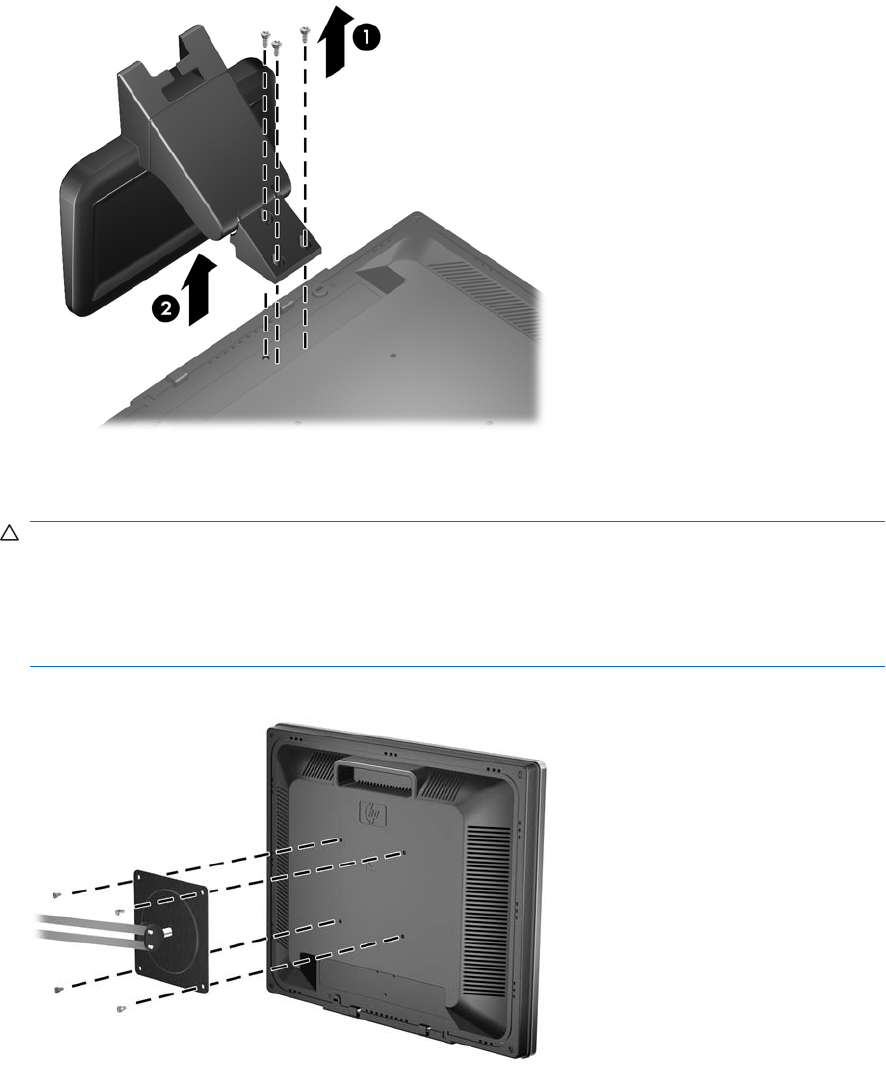

Figure 3-6 Removing the Pedestal Base
4. To attach the monitor to a swing arm, insert four 10mm screws through the holes on the swing arm
plate and into the mounting holes on the monitor.
CAUTION: This monitor supports the VESA industry standard 100 mm mounting holes. To attach
a third-party mounting solution to the monitor, four 4 mm, 0.7 pitch, and 10 mm long screws are
required (not provided with the monitor). Longer screws must not be used because they may
damage the monitor. It is important to verify that the manufacturer’s mounting solution is compliant
with the VESA standard and is rated to support the weight of the monitor display panel. For best
performance, it is important to use the power and video cables provided with the monitor.
Figure 3-7 Installing the Monitor on a Swing Arm
To attach the monitor to other mounting fixtures, follow the instructions included with the mounting
fixture to ensure that the monitor is safely attached.
5. Reconnect the cables to the monitor panel.
Mounting the Monitor Panel 9
