34
Connections
SERIALPC IN
AUDIO
PR/CR/R
P
B/CB/B Y/G
COMPONENT/RGB INAV
VD
HD
RL
S VIDEO
IN
VIDEO
OUT
VIDEO
IN
AUDIO
IN
RL
AUDIO
COMPONENT/RGB IN and Audio IN Terminals
(see page 37)

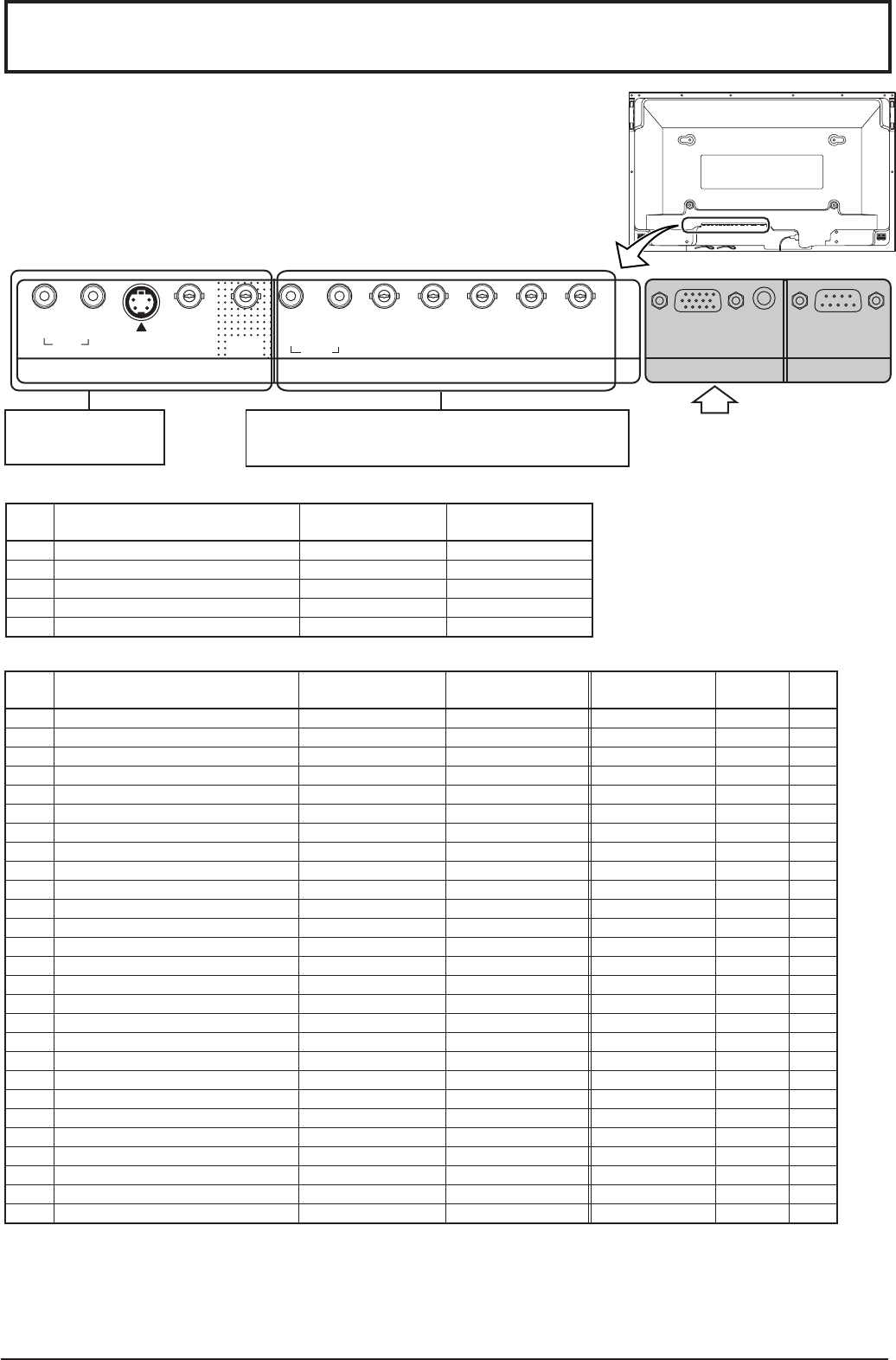

Connection to the Optional Video Input Card. (IF-C50P1G)
By installing the optional Video Input Card, the Plasma Display can handle high
quality input signals such as AV (S Video), DVD, and RGB.
Below is the connecting method when the optional Video Input Card is installed.
Notes:
After installing the Optional Video Input Card, the Setup menu screen on the Plasma Display will change. (The input
signal cables should be connected to the relevant terminals).
• The input signals that may be selected by the INPUT button will change.
• The required mode, either "Component" or "RGB" and "AV" will be available for selection.
• On the Setup menu screen, the setting contents under Signal will change.
AV Terminals
(see page 35, 36)
PC RGB input
AV input signals
Component /RGB/PC input signals
signal name
horizontal vertical
frequency(kHz) frequency(Hz)
1 NTSC 15.734 59.95
2 PAL 15.625 50
3 PAL60 15.734 59.95
4 SECAM 15.625 50
5 Modified NTSC 15.734 59.95
∗
Mark:
Input signal can be displayed.
signal name
horizontal vertical
Component RGB PC
frequency(kHz) frequency(Hz)
1 525 (480) /60i 15.734 59.94
∗∗∗
2 625 (575) /50i 15.625 50
∗∗∗
3 525 (480) /60p 31.468 59.94
∗∗
4 625 (575) /50p 31.25 50
∗∗∗
5 750 (720) /60p 45 60
∗∗∗
6 1,125 (1,080) /60i 33.75 60
∗∗∗
7 1,125 (1,080) /50i 28.125 50
∗∗∗
8 1,125 (1,080) /24p 27 24
∗∗∗
9 1,125 (1,080) /24sF 27 48
∗∗∗
10 640 × 400 @70 31.5 70
∗∗
11 640 × 480 @60 31.5 59.94
∗∗
12 Macintosh13” (640 × 480) 35 67
∗∗
13 640 × 480 @75 37.5 75
∗∗
14 852 × 480 @60 31.7 60
∗∗
15 800 × 600 @60 37.9 60
∗∗
16 800 × 600 @75 46.9 75
∗∗
17 800 × 600 @85 53.7 85
∗∗
18 Macintosh16” (832 × 624) 49.7 75
∗∗
19 1,024 × 768 @60 48.4 60
∗∗
20 1,024 × 768 @70 56.5 70
∗∗
21 1,024 × 768 @75 60 75
∗∗
22 1,024 × 768 @85 68.7 85
∗∗
23 Macintosh21” (1,152 × 870) 68.7 75
∗∗
24 1,280 × 1,024 @60 64 60
∗∗
25 1,280 × 1,024 @75 80 75
∗∗
26 1,280 × 1,024 @85 91.1 85
∗∗
27 1,600 × 1,200 @60 75 60
∗∗
