Never use this water heater unless it is completely full of water.
To prevent damage to the tank and heating element, the tank
must be filled with water. Water must flow from the hot water
faucet before turning "ON" power.
14. Check element for water leaks. If leakage occurs, tighten
element or repeat steps 2 and 3, remove element and
reposition gasket. Then repeat steps 10 through 14.
15. Reconnect the two wires to the element and then check to
make sure the thermostat remains firmly against the surface
of the tank.
Drain Valve Washer Replacement
• Before removing any access
panels or servicing the water
heater, make sure the electrical
supply to the water heater is
turned "OFF".
• Failure to do this could result in
death, serious bodily injury, or
property damage.

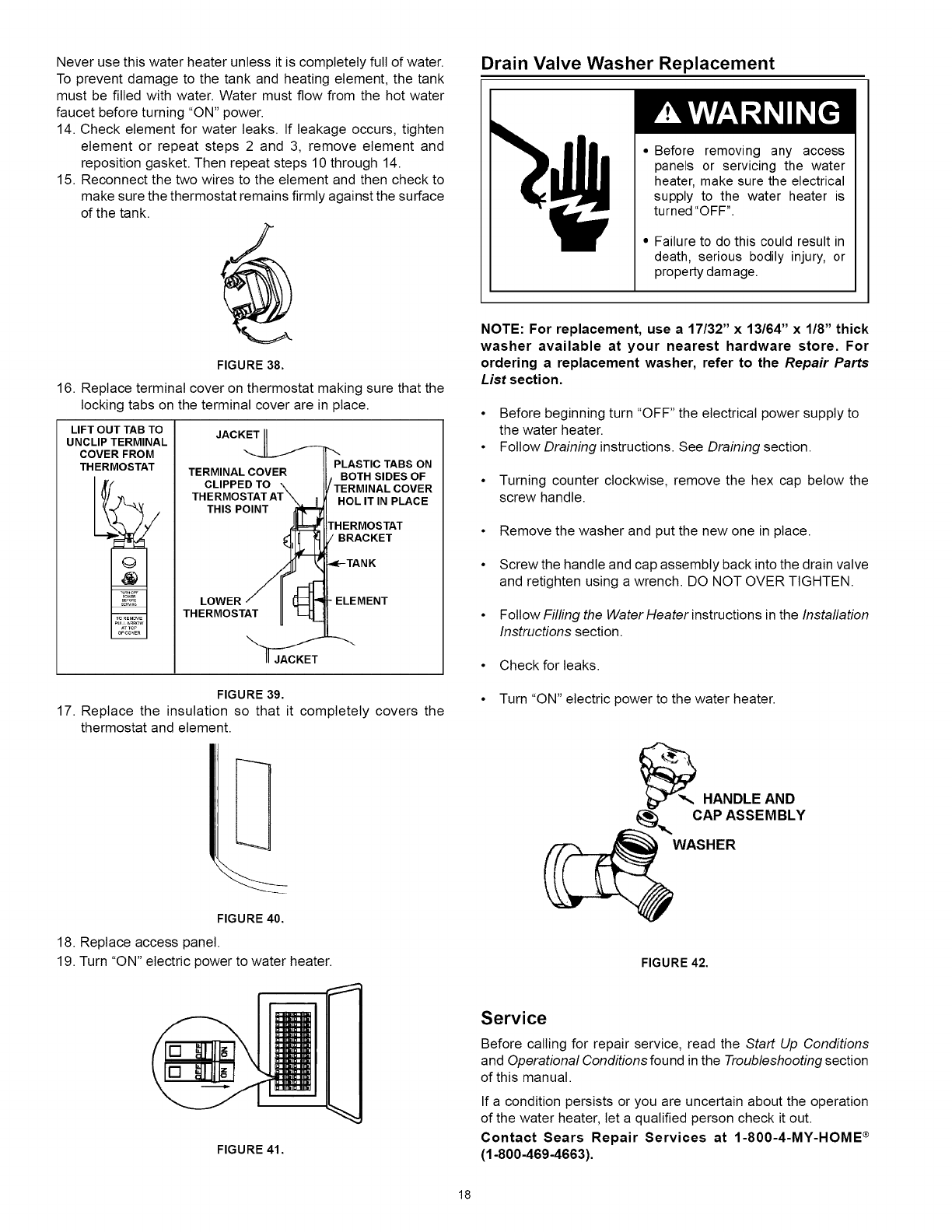

FIGURE 38.
16. Replace terminal cover on thermostat making sure that the
locking tabs on the terminal cover are in place.
LIFT OUT TAB TO
UNCLIP TERMINAL
COVER FROM
THERMOSTAT
JACKET
TERMINAL COVER
CLIPPED TO
THIS POINT
PLASTIC TABS ON
BOTH SIDES OF
TERMINAL COVER
HOL IT IN PLACE
BRACKET
LOWER ELEMENT
THERMOSTAT
JACKET
FIGURE 39.
17. Replace the insulation so that it completely covers the
thermostat and element.
FIGURE 40.
18. Replace access panel.
19. Turn "ON" electric power to water heater.
I
FIGURE 41.
NOTE: For replacement, use a 17/32" x 13/64" x 1/8" thick
washer available at your nearest hardware store. For
ordering a replacement washer, refer to the Repair Parts
List section.
• Before beginning turn "OFF" the electrical power supply to
the water heater.
• Follow Draining instructions. See Draining section.
• Turning counter clockwise, remove the hex cap below the
screw handle.
• Remove the washer and put the new one in place.
• Screw the handle and cap assembly back into the drain valve
and retighten using a wrench. DO NOT OVER TIGHTEN.
• Follow Filling the Water Heater instructions in the Installation
Instructions section.
• Check for leaks.
• Turn "ON" electric power to the water heater.
WASHER
FIGURE 42.
Service
Before calling for repair service, read the Start Up Conditions
and Operational Conditions found in the Troubleshooting section
of this manual.
If a condition persists or you are uncertain about the operation
of the water heater, let a qualified person check it out.
Contact Sears Repair Services at 1-800-4-MY-HOME ®
(1-800-469-4663).
18
