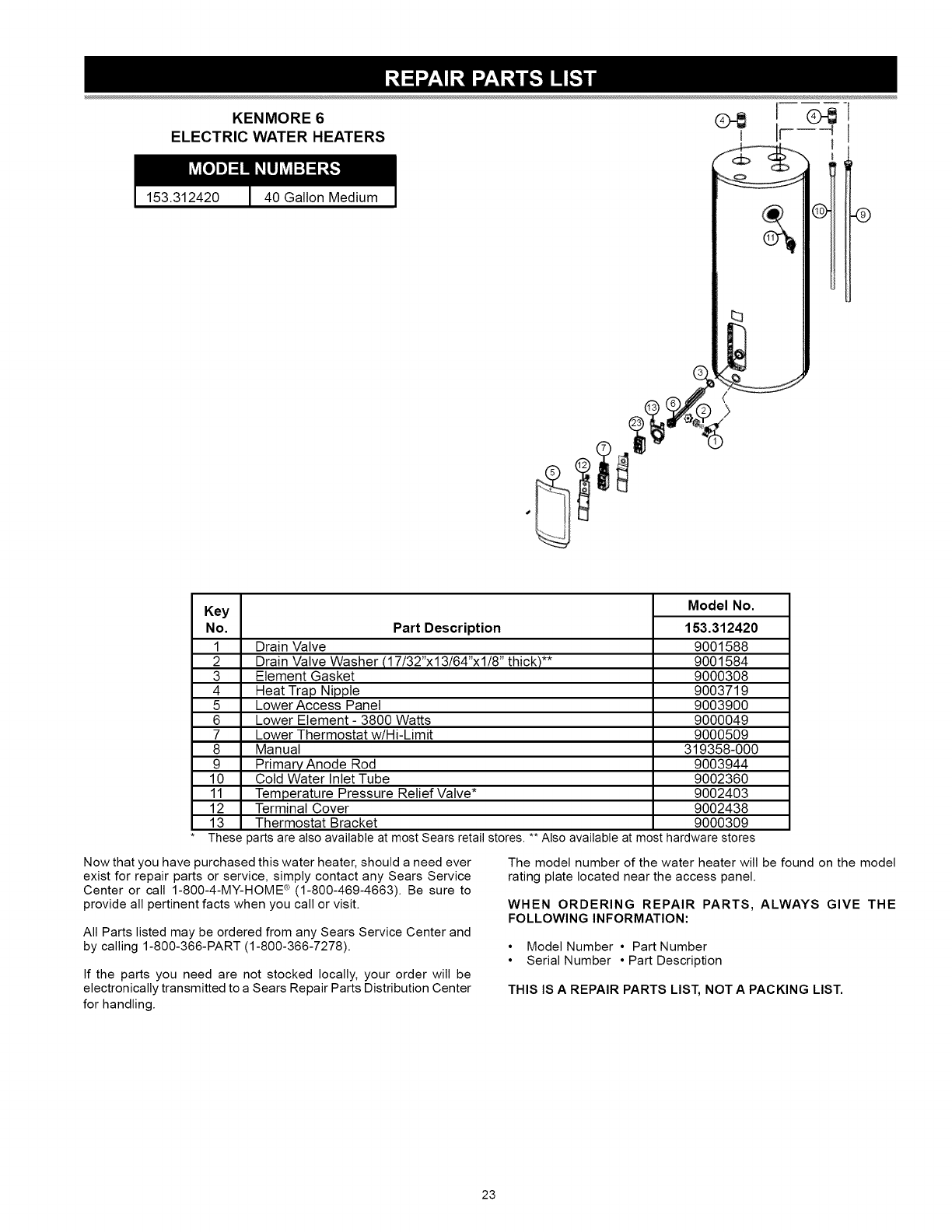

KENMORE 6 _ [ _ "I
ELECTRIC WATER HEATERS I ![
153.312420 40 Gallon Medium
G ®
Key
No. Part Description
1 Drain Valve
2 Drain Valve Washer (17/32"xl 3/64"xl/8" thick)**
3 Element Gasket
4 Heat Trap Nipple
5 Lower Access Panel
6 Lower Element - 3800 Watts
7 Lower Thermostat w/Hi-Limit
8 Manual
9 Primary Anode Rod
10 Cold Water Inlet Tube
11 Temperature Pressure Relief Valve*
12 Terminal Cover
13 Thermostat Bracket
Model No.
153.312420
9001588
9001584
9000308
9003719
9003900
9000049
9000509
319358-000
9003944
9002360
9002403
9002438
9000309
These parts are also available at most Sears retail stores. ** Also available at most hardware stores
Now that you have purchased this water heater, should a need ever
exist for repair parts or service, simply contact any Sears Service
Center or call 1-800-4-MY-HOME ® (1-800-469-4663). Be sure to
provide all pertinent facts when you call or visit.
All Parts listed may be ordered from any Sears Service Center and
by calling 1-800-366-PART (1-800-366-7278).
If the parts you need are not stocked locally, your order will be
electronically transmitted to a Sears Repair Parts Distribution Center
for handling.
The model number of the water heater will be found on the model
rating plate located near the access panel.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE
FOLLOWING INFORMATION:
• Model Number • Part Number
• Serial Number • Part Description
THIS IS A REPAIR PARTS LIST, NOT A PACKING LIST.
23
