DISASSEMBLY PROCEDURE
M2*3L
CPU Module
CPU MODULE
REMOVAL

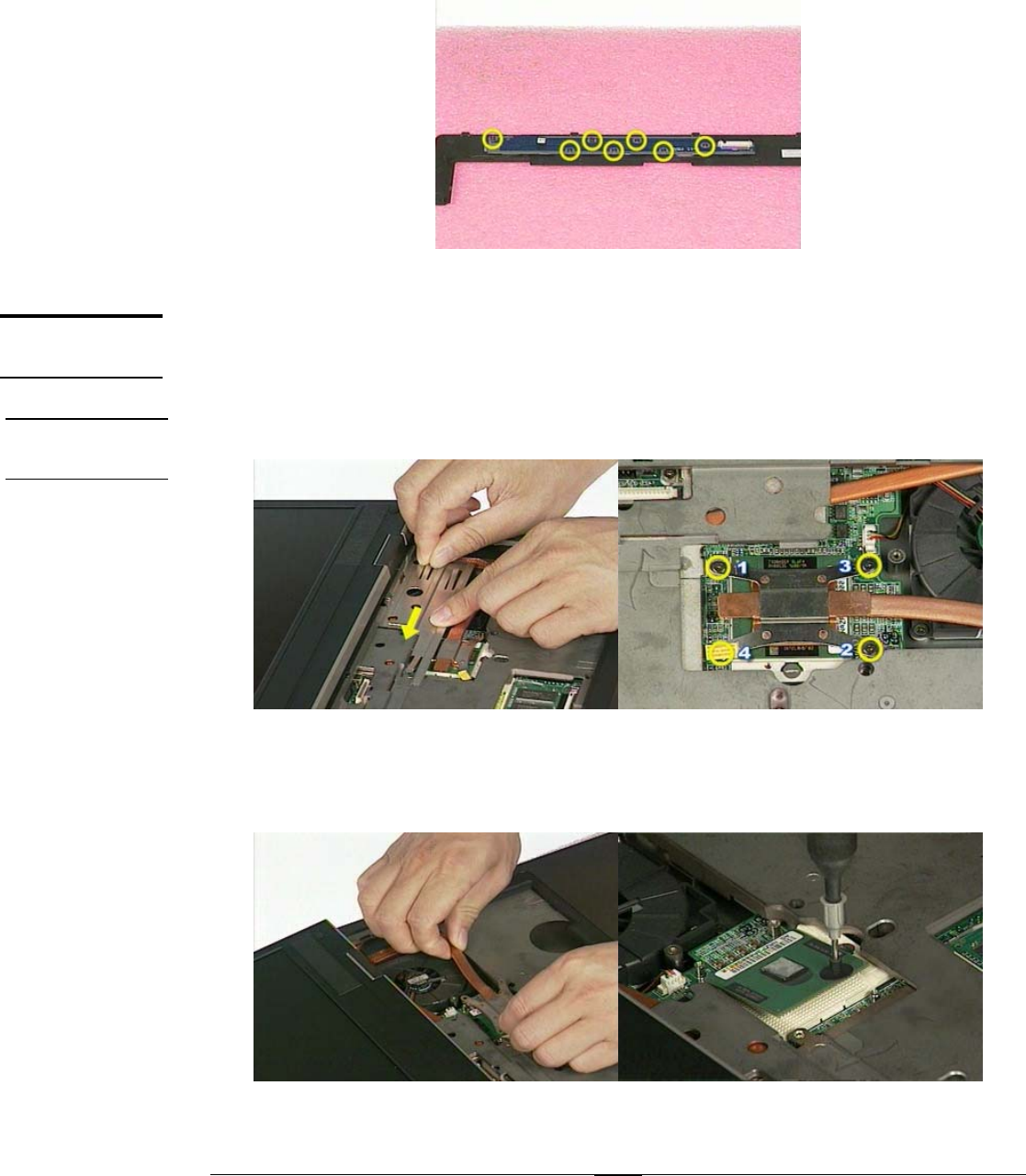

The illustrations below show how to remove the CPU module from the notebook.
Removing CPU
CPU
REMOVAL
1. Take the Fan bracket away then remove 4 screws (M2*6L(K)).
M2*6L
2. Remove Thermal module and open the CPU Socket’s latch to loosen the CPU.(The use the
CPU vacuum hand pump to “suck up” the CPU and lift the CPU away.)
3 - 5
