NEC Versa M540/PB EasyNote R7 Disassembly Manual
Page 6
Removing the Hard Disk Drive
To remove the hard disk drive, first remove the battery (see Removing the Battery), then
perform the following steps:

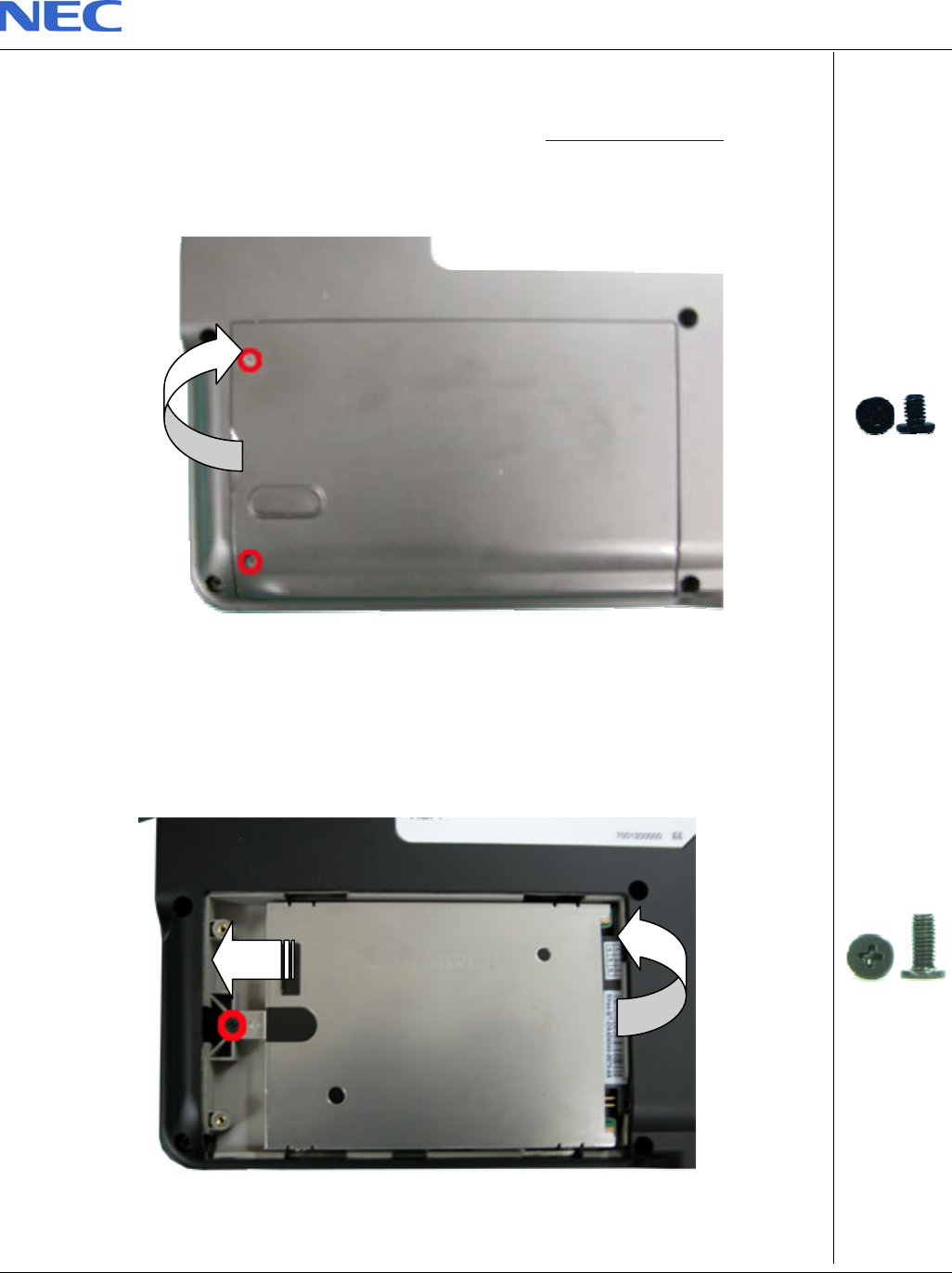

1. Remove the screws on HDD cover and carefully open up as shown in Fig. 2
Fig. 2 Removing the Hard disk drive cover
2. Unscrew the HDD module and disconnect it as shown in Fig. 3
Fig. 3 Disconnecting the hard disk drive
M2x3.5 Black
M2.5x7 Black
1
2
