THROUGH OUT (S-VIDEO).....Connect to a second monitor’ s S-
connector input to relay the video signal input at S-VIDEO 1 IN.
75 /HIGH Impedance Select Switch for BNC type.....Set to “75
during normal operation. In multiple connections using VIDEO 1
IN and THROUGH OUT (BNC type) terminals, set to “HIGH” on
all but the last monitor. Set to “75 ” on the last monitor only.
AUDIO R IN.....This is your right channel audio input for stereo
sound.
B RGB 2
R, G, B, H/CS and V IN (BNC).....These are analog RGB input
terminals.
Connect external components with R, G, B, H/CS, and V output
terminals to these analog RGB input terminals. Be sure that the
RGB connection cable is correctly attached to the corresponding
terminals.
R, G, B, H/CS and V THROUGH OUT (BNC).....Connect to a second
monitor’s RGB inputs to relay the RGB signal inputs at R, G, B, H/
CS, and V IN.
75 /HIGH Impedance Select Switches for RGB and H/CS&V.....Set to
“75 ” during normal operation. In multiple connections using R, G,
B, H/CS and V IN and OUT terminals, set to “HIGH” on all but the
last monitor. Set to “75 ” on the last monitor only.
C EXT SPEAKER
RIGHT + ....... Connect RIGHT speaker positive wire here.
RIGHT - ........ Connect RIGHT speaker negative wire here.
LEFT -.......... Connect LEFT speaker negative wire here.
LEFT + .........Connect LEFT speaker positive wire here.
SPEAKER SELECT INT/EXT Select Switch.....Set to the INT position
for built-in monitor speakers. Set to the EXT position for
speakers connected to the EXT SPEAKER terminals.
D DIP Switch
DIP SW..... This DIP switch sets Sync. Control, the Intelligent
Power Manager, external control on/off, remote control on/off, and
OSM system control on/off. See pages 17 and 18 for more details.
E AC Input
Connect the supplied power cord’ s three-pin plug here.

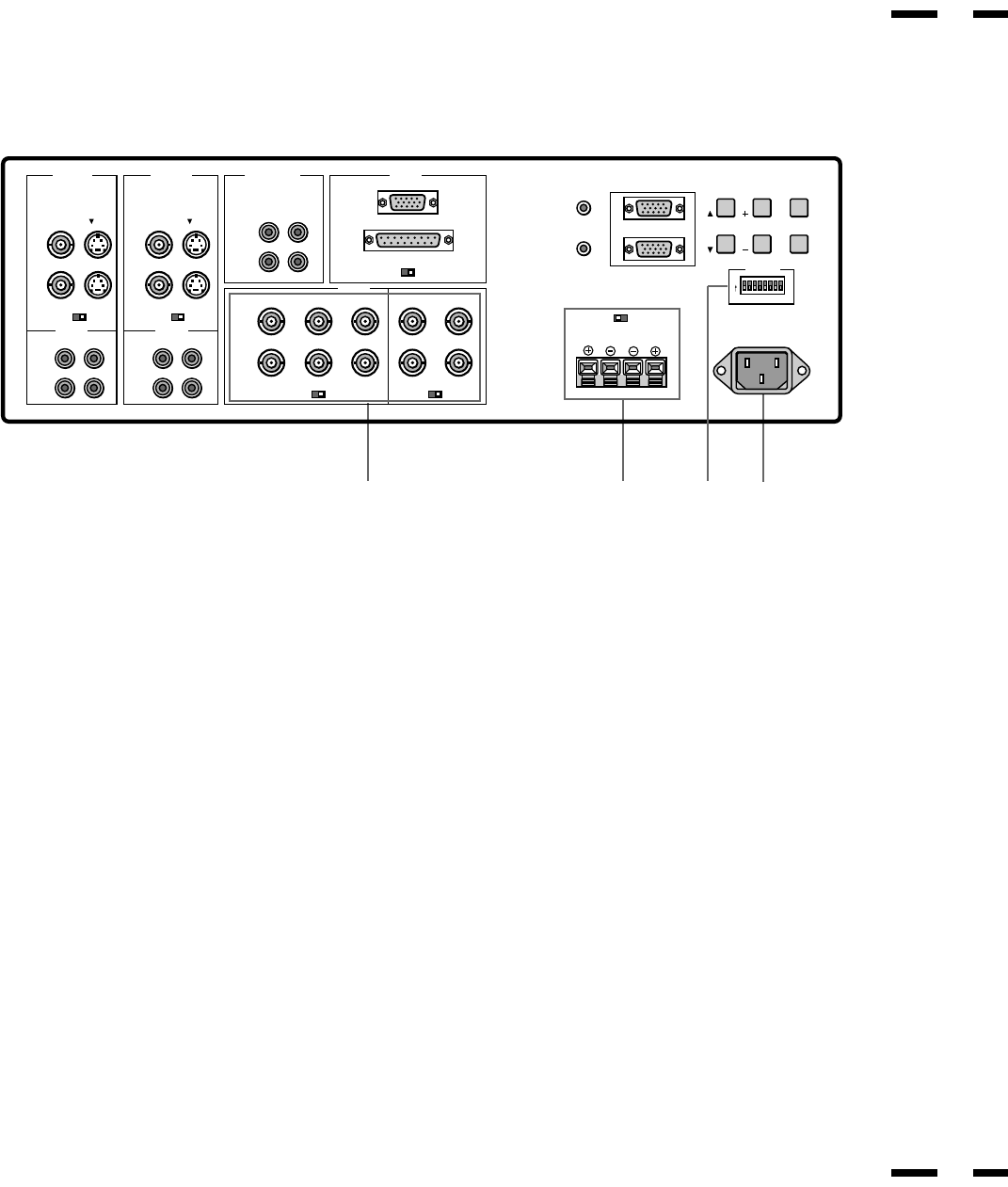

Terminal Board
D
E
VIDEO 1 VIDEO 2 RGB AUDIO RGB 1
THROUGHPUT
REMOTE
EXTERNAL CONTROL
VIDEO RGB PROCEED
EXIT
DIP SW
AC IN
SPEAKER SELECT
EXT SPEAKER
RGB 2
AUDIO AUDIO
IN/OUT
HIGH 75
R
MONO
IN
THROUGH
OUT
THROUGH
OUT
IN
BNC S
HIGH 75
THROUGH
OUT
IN
R
THROUGH
OUT
IN
R
THROUGH
OUT
IN
BNC S
HIGH 75
IN
THROUGH
OUT
R G B H/CS V
HIGH 75HIGH 75
SPEAKRES MUST
HAVE MORE THAN
5WATT RATING
INPEDANCE 8 OHM
RIGHT LEFT
INT EXT
IN
THROUGH
OUT
1
2
1
2
12345678
ON
()
L
MONO
()
L
MONO
()
L
MONO
()
L
BC
