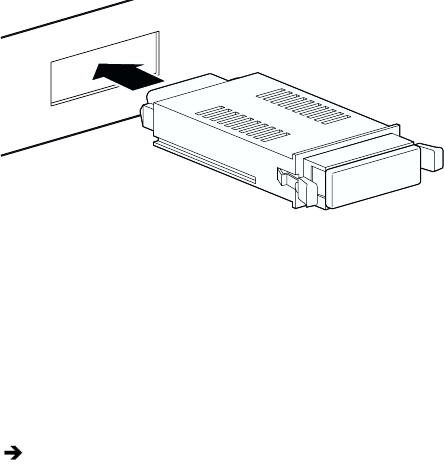

Figure 11 Installing a GBIC
3
Press on the front of the GBIC until it snaps into place.
4 Remove the rubber plug to connect cables.
Removing an Installed GBIC from an MDA
For a description of the GBIC MDA, see “GBIC MDA” on
page 22.
To remove an installed GBIC:
• If the GBIC has spring tabs (Figure 9 on page 23), press in
on the tabs on each side of the GBIC as you pull the GBIC
out of the MDA’s Host port (Figure 12).
Do one of the following:
