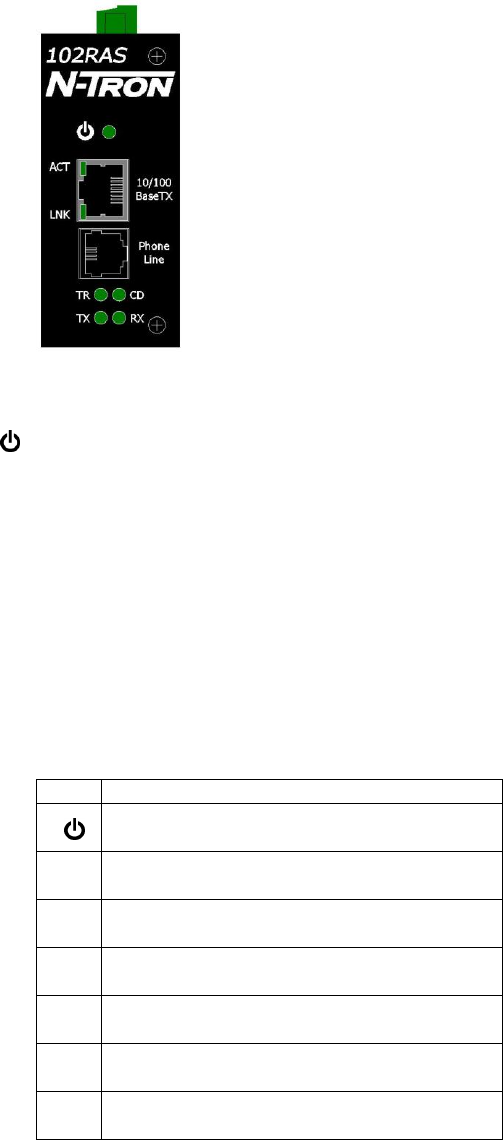

Front Panel
From Top to Bottom:
Green LED lights when Power is supplied to the module
RJ-45 Port Auto sensing 10/100 Base-TX Connection
RJ-11 Port Phone line connection
TR Transmit Ready
CD Carrier Detect
TX Transmit
RX Receive
Note: The RJ45 data port has two LED’s located at the side of the connector. The bottom LED indicates
LINK status, and the top LED indicates ACTIVITY.
LED’s: The table below describes the operating modes:
LED
Description
Lit when Power is applied.
LNK
Lit when 10/100 Mb Link between ports exists.
ACT
Lit when data is active between ports.
TR
Lit when 102RAS modem is ready to answer.
CD
Lit when carrier is detected by 102RAS.
TX
Lit when data is being transmitted by 102RAS.
RX
Lit when data is being received by 102RAS.
Phone Interface
The 102RAS provides an RJ-11 phone line interface to connect to a standard wall outlet.
