DIN-Rail Mounting
Install the unit in a standard DIN-Rail. Recess the unit to allow at least 5” of horizontal clearance for fiber optic cable bend radius
(2” for TX models).

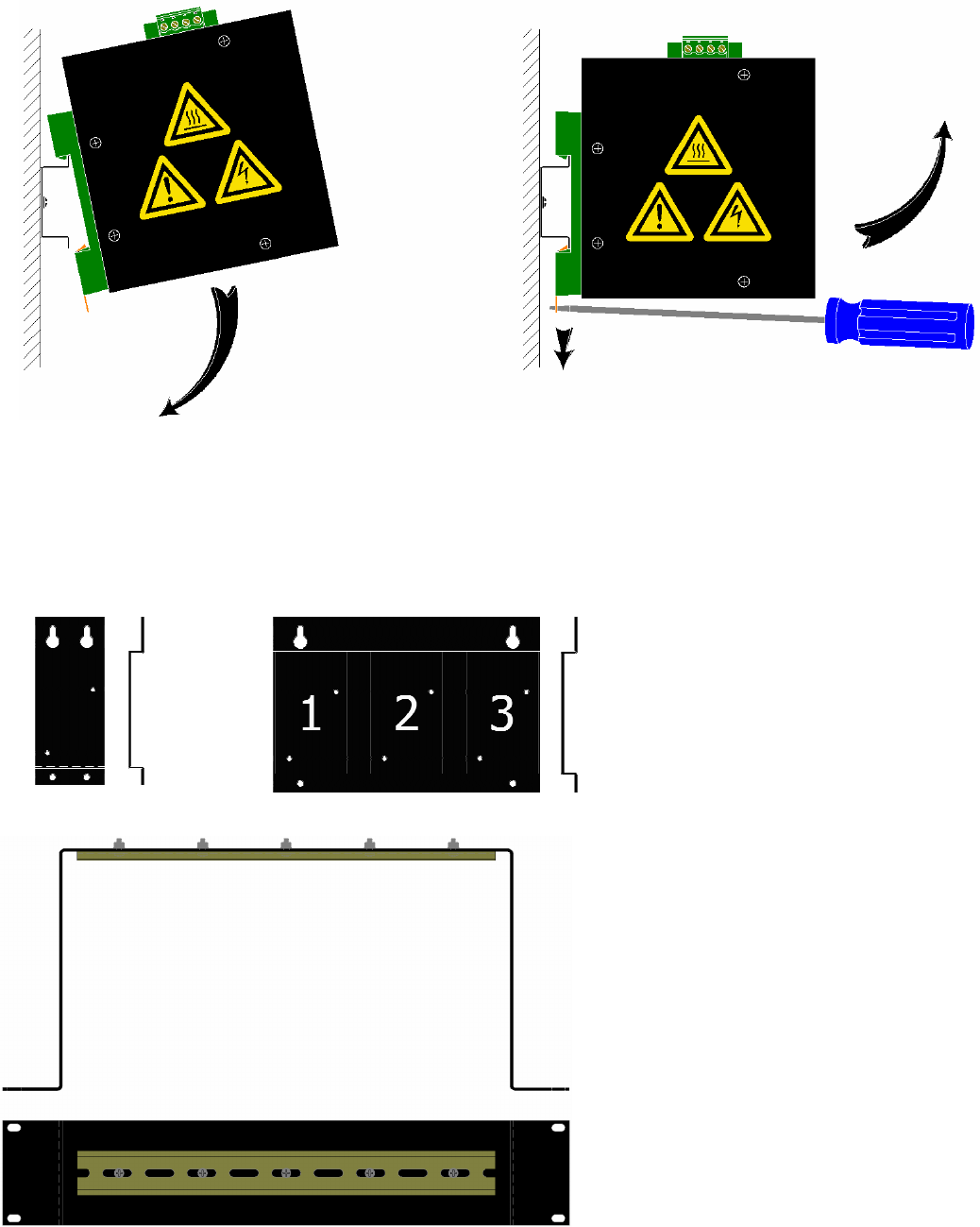

To install the unit to 35mm industrial DIN-Rail, place
the top edge of the included mounting bracket on the back
of the unit against the DIN-Rail at a 15° angle as shown.
Rotate the bottom of the unit to the back (away from you)
until it snaps into place.
To remove the unit from the 35mm industrial DIN-Rail,
place a flat head screwdriver into the orange release clip
found at the bottom of the unit, and apply downward force
on the clip until it disengages from the bottom of the unit
from the DIN-Rail. Rotate the bottom of the unit towards
you and up at an approximate 15° upward angle to
completely remove the unit.
300-PM 900-PM
900-RM
With the exception of the 524TX and
526FX2, all N-Tron™ products are designed
to be mounted on industry standard 35mm
DIN-Rail. However, DIN-Rail mounting may
not be suitable for all applications. We offer
three alternative mounting solutions: Our 300
Panel Mount Assembly (P/N: 300-PM) may
be used to mount a single 300 Series unit to a
panel or other flat surface. Our 900 Panel
Mount Assembly (P/N: 900-PM) may be
used to securely mount our 100, 200, 300,
400, 500, or 900 Series products to a panel or
other flat surface; Our Rack Mount Assembly
(P/N: 900-RM) may be used to mount our
products to standard 19" racks.
