APPENDIX C
PATTON MODEL 1005 PIN/SIGNAL ASSIGNMENTS
APPENDIX D

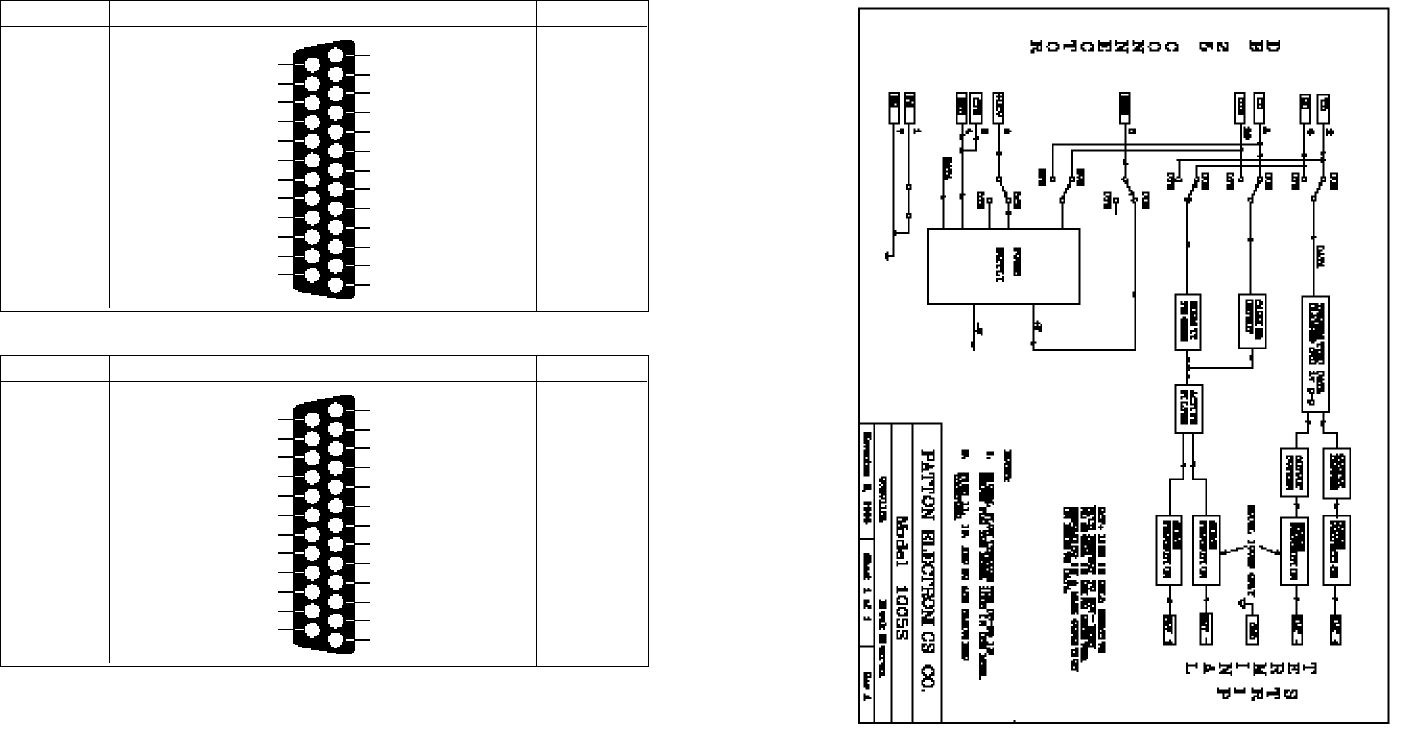

PATTON MODEL 1005 BLOCK DIAGRAM
Copyright © 1998
Patton Electronics Company
All Rights Reserved
1- (FG) Frame Ground
2- (TD) Transmit Data To Model 1005
3- (RD) Receive Data From Model 1005
4- (RTS) Request to Send To Model 1005
5- (CTS) Clear to Send From Model 1005
6- (DSR) Data Set Ready From Model 1005
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect From Model 1005
To Model 1005 Data Term. Ready (DTR) - 20
DIRECTION STANDARD “DCE” SETTING DIRECTION
1- (FG) Frame Ground
2- (TD) Transmit Data From Model 1005
3- (RD) Receive Data To Model 1005
4- (RTS) Request to Send From Model 1005
5- (CTS) Clear to Send To Model 1005
6- (DSR) Data Set Ready To Model 1005
7- (SG) Signal Ground
8- (DCD) Data Carrier Detect To Model 1005
From Model 1005Data Term. Ready (DTR) - 20
DIRECTION STANDARD “DTE” SETTING DIRECTION
13 14
