Planet Technology GSW-2404SF Switch User Manual



As show in Figure 4-8 and Figure 4-9

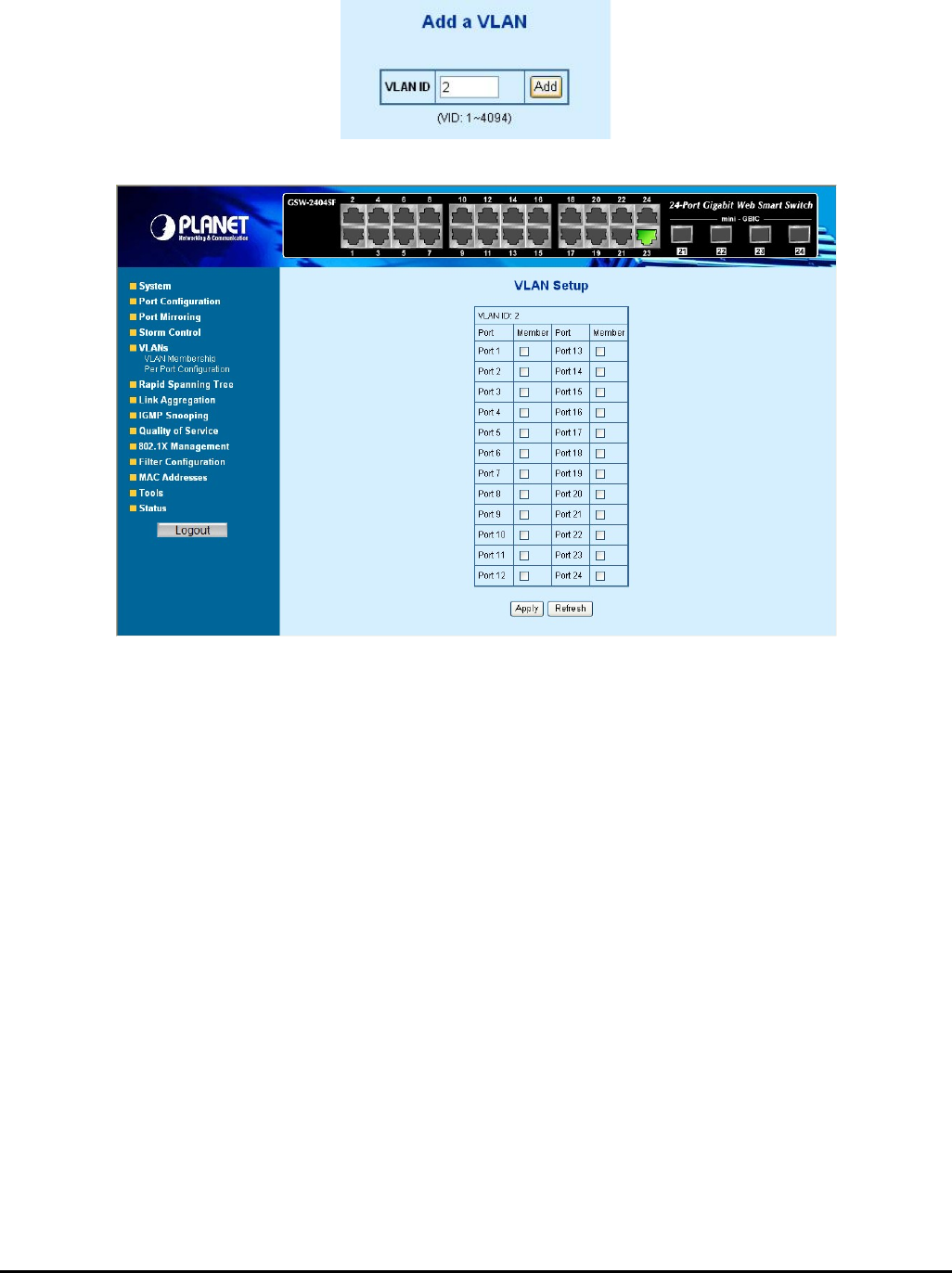

Figure 4-8 Add a VLAN screen
Figure 4-9 VLAN Member Setup screen
4.6.1.2 Modify the VLAN Group Member
Once you want to modify the existence VLAN Group member or delete a existence VLAN Group. Refer to the following
steps.
1. To modify the members of an existence VLAN Group, check the VLAN Group ID and press “Modify” button. the
ID VLAN Setup screen will pop out.
2. To add/remove a port from specific VLAN group, just check/cancel the Member check Box and press “Apply” to
take affect.
3. To delete an existence VLAN Group, check the VLAN Group ID and press “Delete” button.
As show in Figure 4-10 appears.
-22-
