2. INSTALLATION
This section describes the functionalities of the Switch's components and guides how to install it on the
desktop or shelf. Basic knowledge of networking is assumed. Please read this chapter completely before
continuing.
2.1 Product Description
2.1.1 Product Overview
The PLANET WSW-2401A is a 24-Port 10/100Mbps fast Ethernet Switch with 1-Port open slot for
100Mbps Fiber interface which boasts a high performance switch architecture that is capable of providing
non-blocking switch fabric and wire-speed throughput as high as 5Gbps. Its optional 100Base-FX fiber
slot also offers incredible extensibility, flexibility and connectivity to the Core switch or Servers.
The IEEE 802 standard-based firmware provides a rich set of features and ensures interoperability with
equipment from other vendors. Additionally, the firmware includes advanced features such as IGMP
snooping, broadcast storm control, and MAC address filtering, to enhance security and bandwidth
utilization.
With its built-in web-based management, the PLANET WSW-2401A offers an easy-to-use,
platform-independent management and configuration facility. The PLANET WSW-2401A supports
standard Simple Network Management Protocol (SNMP) and can be managed via any standard-based
management software. For text-based management, the WSW-2401A can also be accessed via Telnet
and the console port.
2.1.2 Switch Front Panel

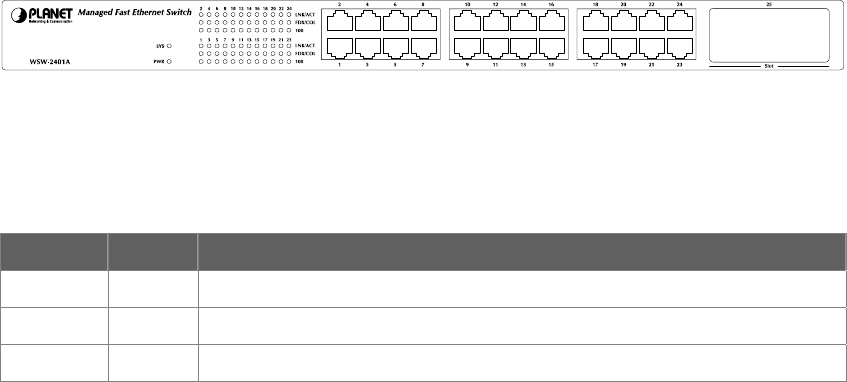

Figure 2-1 shows the front panel of the switch.
Figure 2-1 WSW-2401A front panel.
2.1.3 LED Indications
Network:
LED Color Function
PWR Green Lights to indicate that the Switch is powered on.
SYS Green Lights to indicate the system is working.
LNK/ACT Green Blink to indicate that the switch is actively sending or receiving data over that
