8.6. Three-Level (3L) Input Pins (With External Resistors)

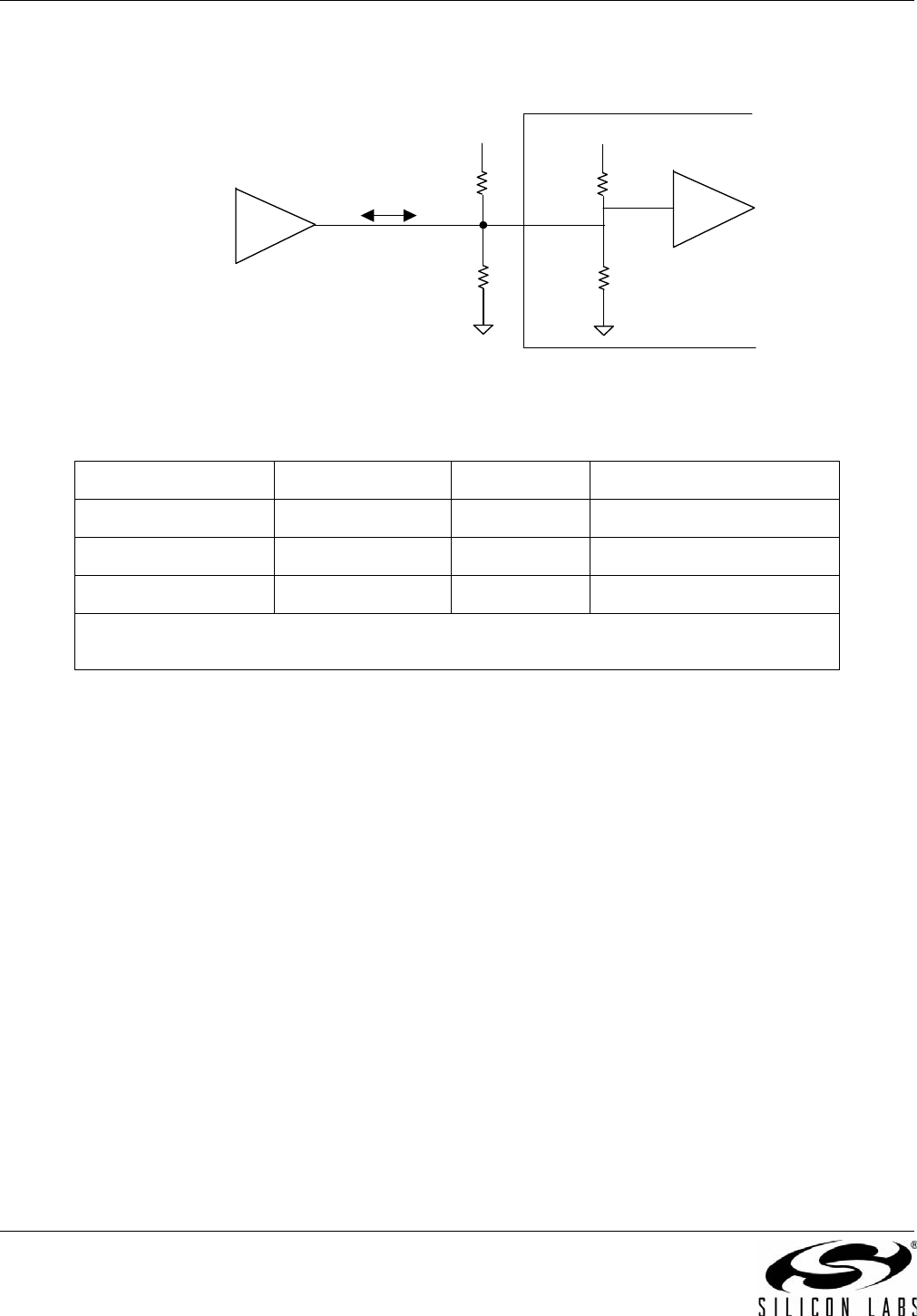

Figure 56. Three Level Input Pins
Any resistor pack may be used.
The Panasonic EXB-D10C183J is an example.
PCB layout is not critical.
Resistor packs are only needed if the leakage current of the external driver exceeds the listed currents.
If a pin is tied to ground or Vdd, no resistors are needed.
If a pin is left open (no connect), no resistors are needed.
Parameter Symbol Min Max
Input Low Current Iill –30 µA
Input Mid Current Iimm –11 µA –11 µA
Input High Current Iihh –30 µA
Note: The above currents are the amount of leakage that the 3L inputs can tolerate from an external
driver.
External Driver
Si53xx
I
imm
18 k
V
DD
18 k
75 k
V
DD
75 k
One of eight resistors from a Panasonic EXB-D10C183J
(or similar) resistor pack
