SVP 450 PLUS - SVD 500 PLUS
37
ENGLISHENGLISH
ENGLISHENGLISH
ENGLISH

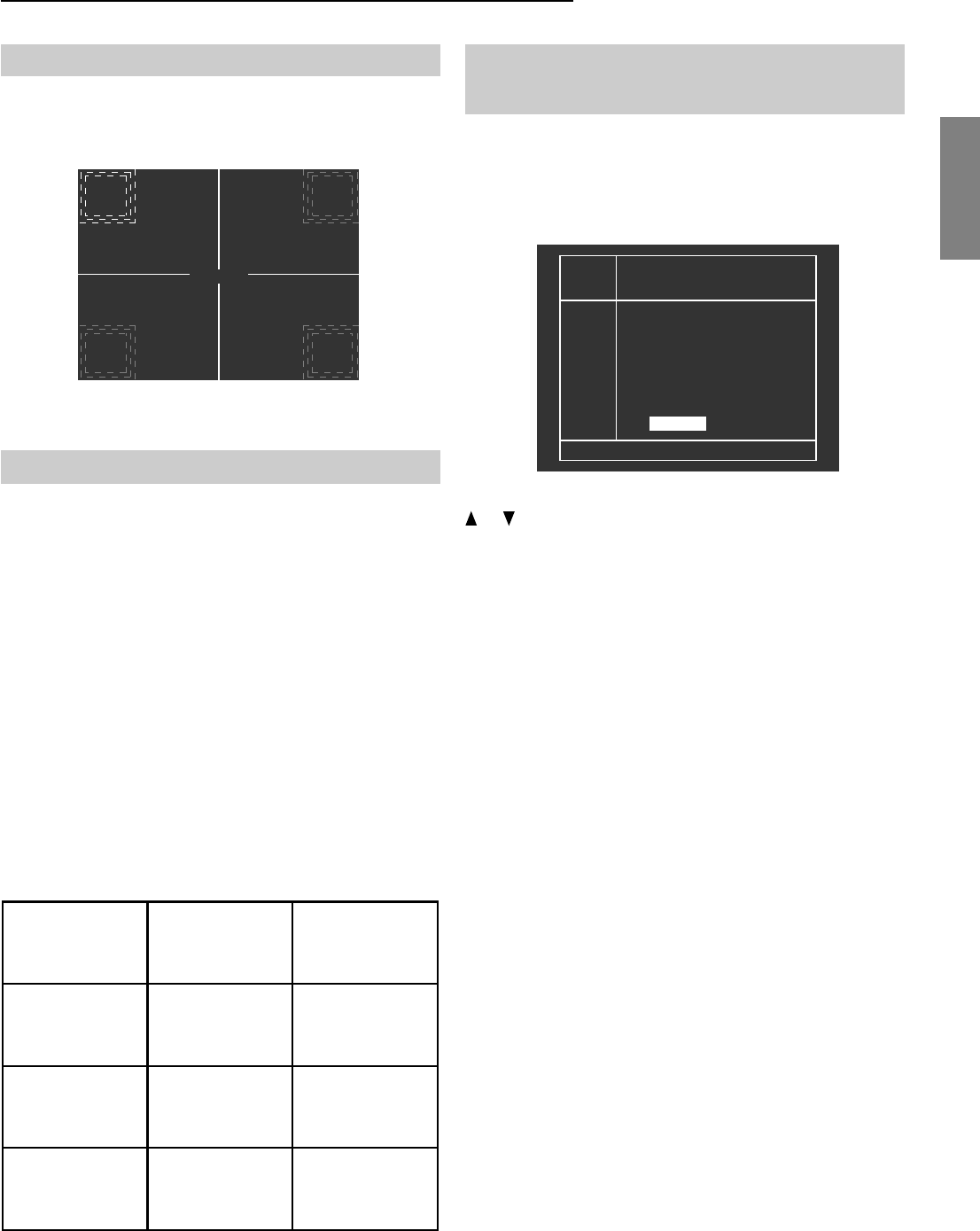

5.15 Screen corners corrections
Upon pressing the ENTER button, you enter the
corner adjustment menu, the folowing image will
appear.
H. = 50 V. = 60
ZONE
CRT : RGB ADJ / R . .
+
+
+
+
Press EXIT or ENTER to change.
Press ESC to exit.
5.16 How to reset the adjustments
Note: Resetting means setting all adjustment values at
50 that corresponds to zero. Starting from this value
you can adjust up to 100 or down to 0.
To reset adjustments read the following instructions
carefully.
While in the deflection setup, by pressing the RESET
button, the deflection parameters, convergence and the
zones for the R,G,B, tubes are reset. While in the
ceonvergence setup, by pressing the RESET button, the
convergence parameters and the zone ones for the
selected tube only are reset. While in the zone setup, by
pressing the RESET button, the zone parameters are
reset only for the selected tube. The following table shows
which parameters are reset and in which menu.
RESET
RESET
PARAMETER
COLOUR
DEFLECTION ALL
CONVERGENCE
ZONE
CONVERGENCE
ONLY THE
SELECTED COLOUR
ZONE
ZONE
ONLY THE
SELECTED COLOUR
ZONE
DEFLECTION
CONVERGENCE
5.17 How to store the convergence
adjustments
To store convergence, deflection, and zone
adjustments press MEMO
Thus entering the MEMORY MANAGER the following
image will appear:
MEMORY MANAGER
Mem adjusted value to bank
LOAD
COPY
BN NAME F HOR VER
01 Pal Upc
. . . . .
Pup 16/9
Nstc.....
NstcUpc
Vga 2
Vga 3
N 31.2 50
02
---
.
- ---
03 W 31.2 50
04 N 15.7 60
05 N 31.4 60
06 N 35.1 56
07 N 37.6 68
WORK
08
MOVE
DEL
the current and highlighted memory bank. Use the arrow
or to select in which memory bank you wish to store
the convergence settings and press ENTER to confirm,
or press EXIT to exit.
