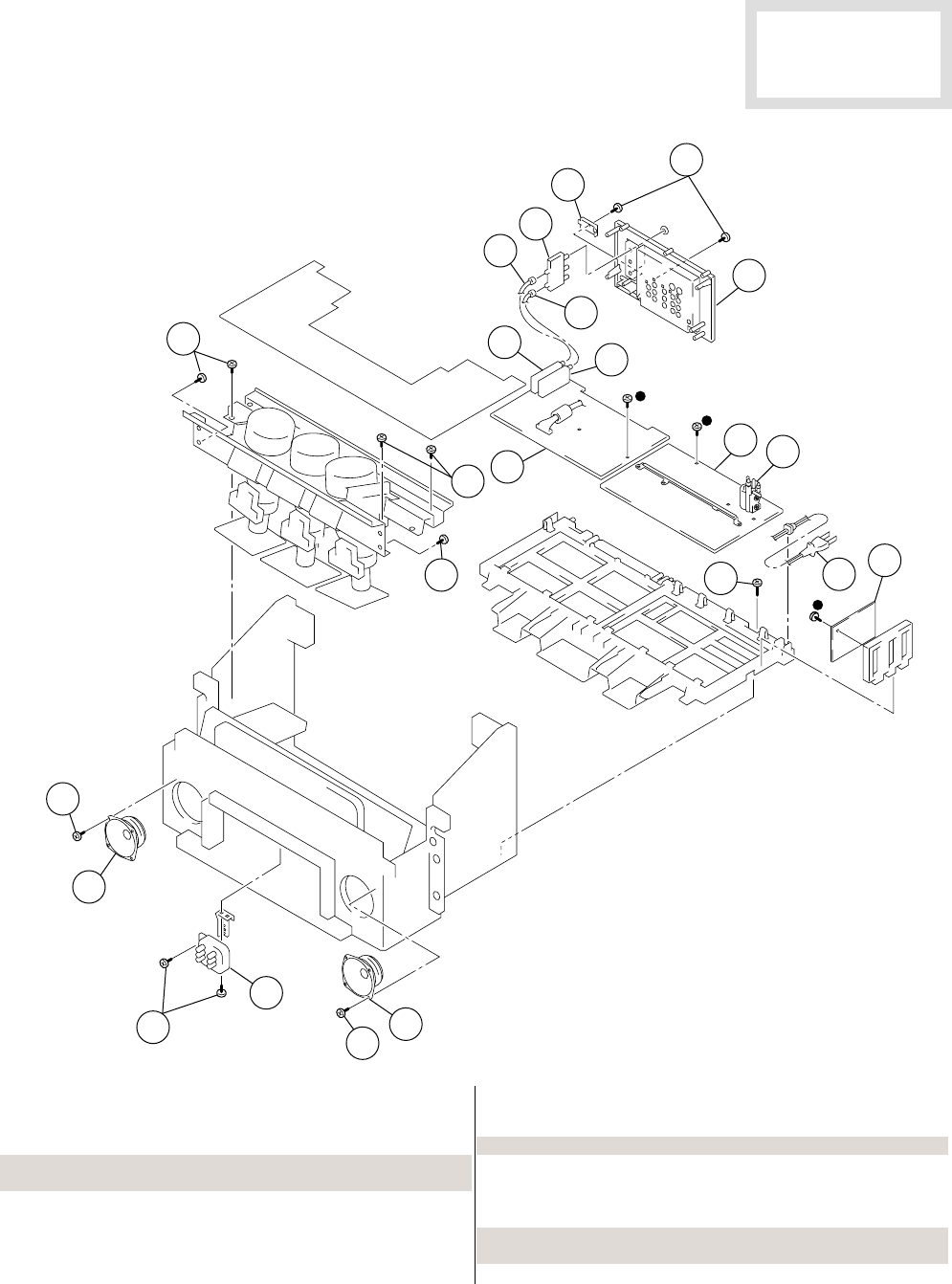

7-3. CHASSIS (KP-43T75C)
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
REF. NO. PART NO. DESCRIPTION REMARK
–––––––– ––––––––– ––––––––––––– –––––––––
101
103
102
101
102
109
110
116
116
111
105
106
104
102
102
102
112
114
113
102
108
107
115
The components identified by
shading and mark
! are criti-
cal for safety.
Replace only with part number
specified.
r : +BVTP 3X12 7-685-648-79
101 1-529-396-11 SPEAKER (10CM)
102 4-378-522-31 SCREW (4X20), TAPPING
103 0 1-223-925-11 RESISTOR ASSY (HIGH-VOLTAGE)
(FOCUS PACK)
104 * A-1299-046-A A BOARD, COMPLETE
105 8-598-431-20 TUNER, SFF BTF-WA411 (TU151)
106 8-598-430-00 TUNER, SFF BTF-FA401 (TU152)
107 * 1-557-056-31 CABLE, P-P
108 1-556-945-21 CABLE, P-P
109 0 8-598-414-20 CHANGER, ANTENNA AS-2F
110 4-069-675-01 CAP, TERMINAL BOARD
111 4-069-674-11 TERMINAL BOARD
112 * A-1316-478-A G BOARD, COMPLETE
113 0 1-769-796-31 CORD, POWER (WITH CONNECTOR)
114 0 1-453-238-31 FBT ASSY (T504)
115 * A-1241-388-A FA BOARD, COMPLETE
