Dione Card Components
8 KMS: LTO4 Technical Brief • June 2008 Revision: A • 316196601
Dione Card Components
The Dione card installs in the open area of the drive trays behind the tape drives.
Library drive trays that support this card are the:
■ SL8500
■ SL3000
■ SL500
■ L-Series
Each drive tray has its own unique configuration depending on the space in the
open area of the drive tray.
FIGURE 2-1 shows an example of a Dione card, which consists of:
■ Dione card
■ Ethernet connector (RJ-45)
■ Power connection (inline with the tape drive power)
■ Communications connection to the tape drive
■ Reset switch (on the drive tray rear panel)
■ Green Status LED (on the drive tray rear panel)

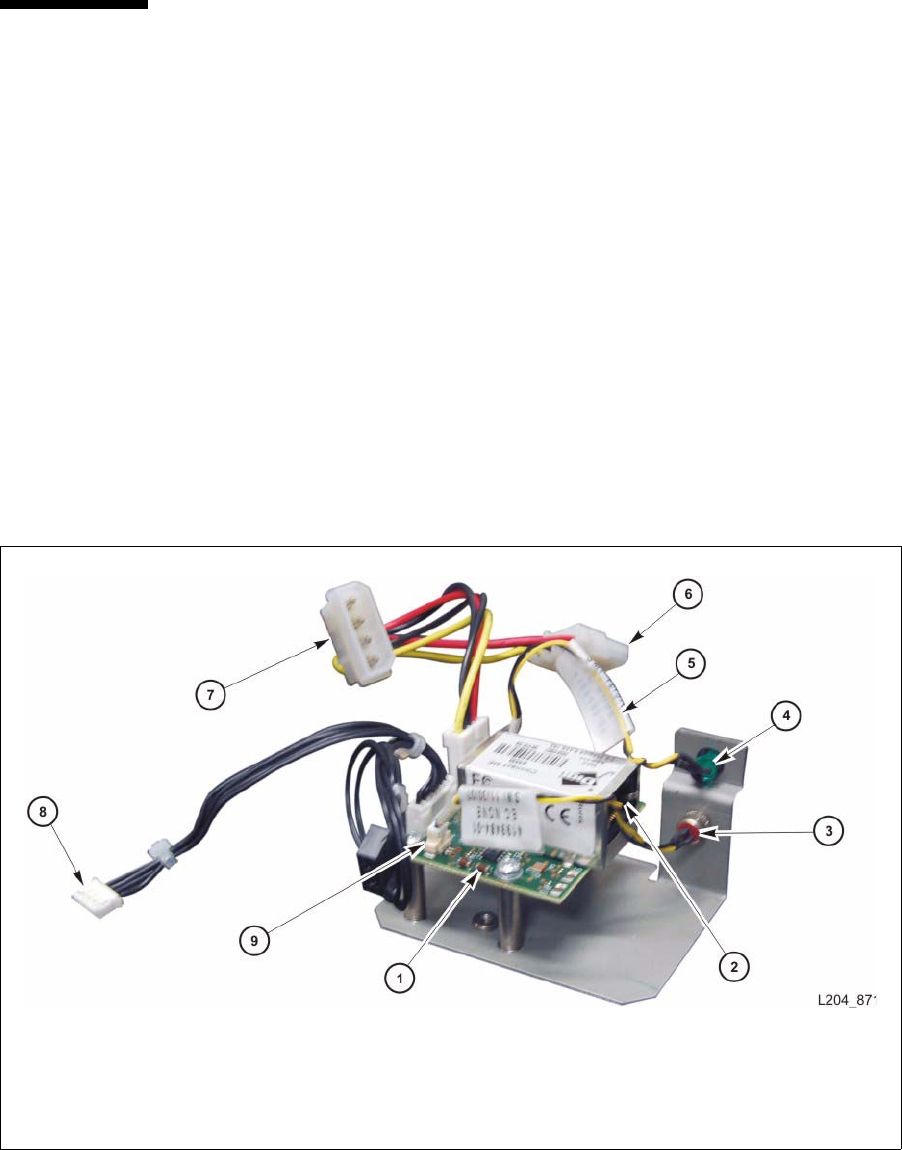

FIGURE 2-1 Dione Card Components
1. Dione card
2. Ethernet connection (RJ-45)
3. Reset switch
4. Green status LED
5. LED connection (2 wires)
6. Inline power connection
7. Tape drive power connection
8. Tape drive communications connection
9. Reset switch connection (2 wires)
