Sunway NT 6000 Power Supply User Manual



115
Individual PV system with maximum distance of 50 m between solar inverter and PC
RS 485+
RS 485+
RS 485–
RS 485–
GND_G
TX
RX
GND_G
TX2
RX2
Yellow
Green
Brown

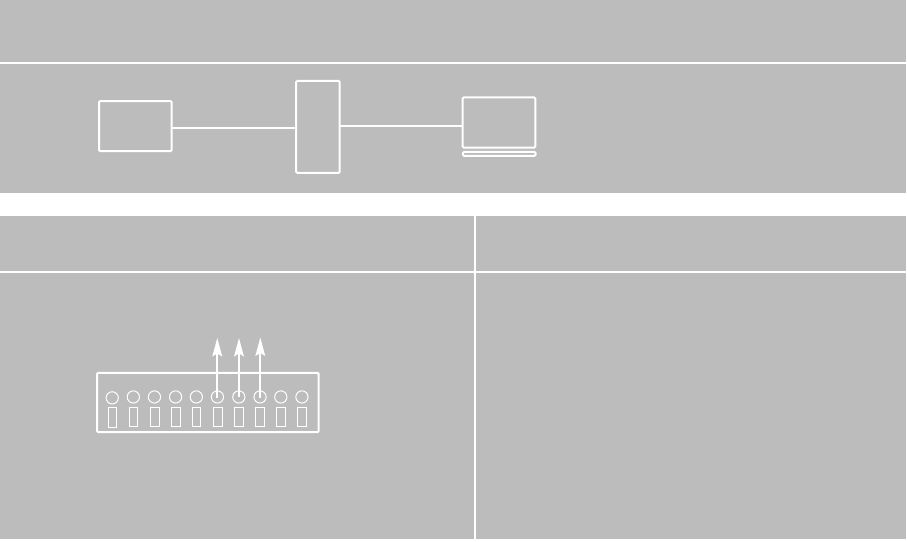

Connection to PC via RS 232
A single solar inverter can be directly connected
to a PC via the RS 232 interface
Stripped length: 11 mm
Jumper JP400: open
PC
INVERTER
(1)
PV
RS 232
Connection and circuitry options
(1) This connection can be used to read out
an individual solar inverter if the distance
from the PC used does not exceed 50 m. To
do this, cable type A is stripped to 11 mm
and connected to the solar inverter.
